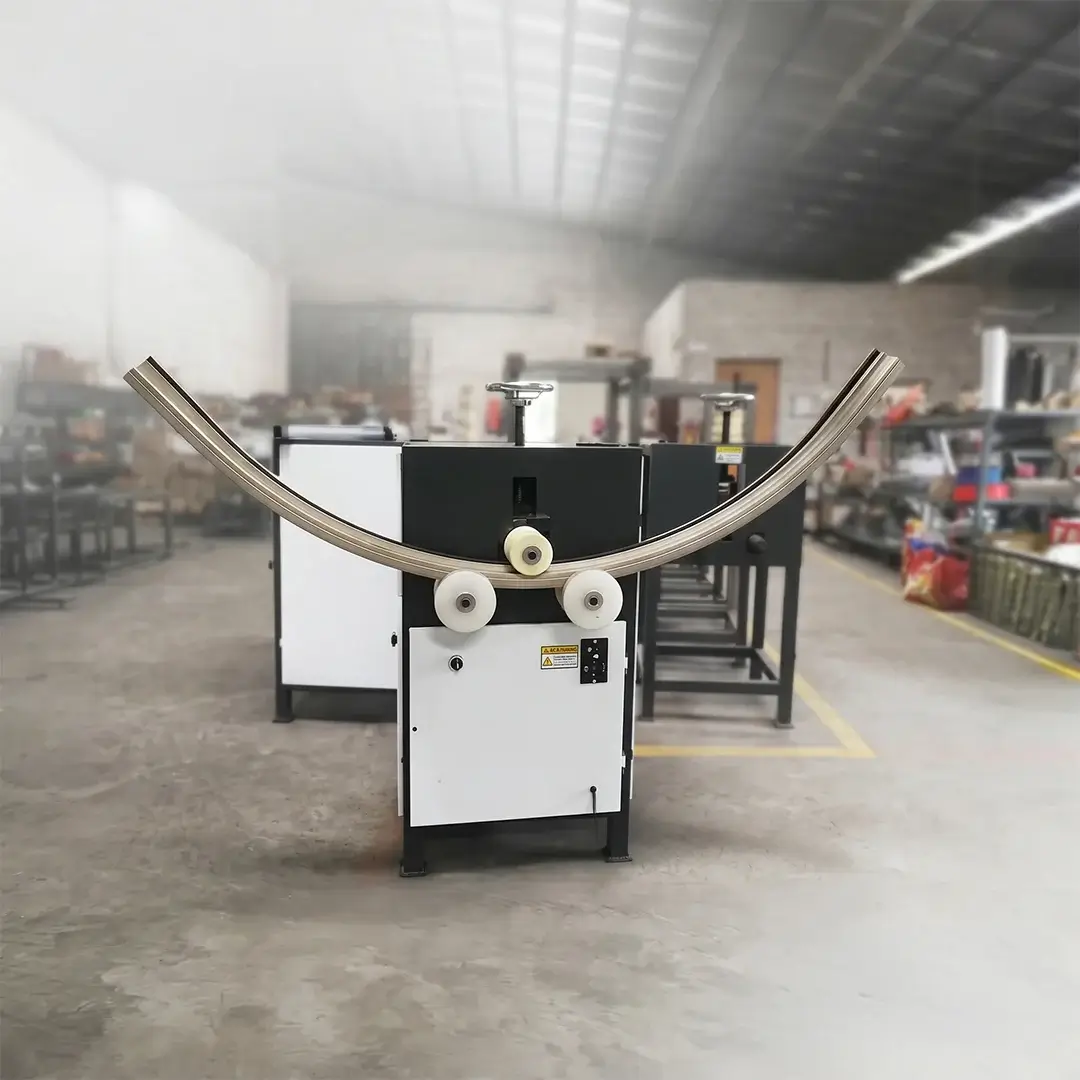

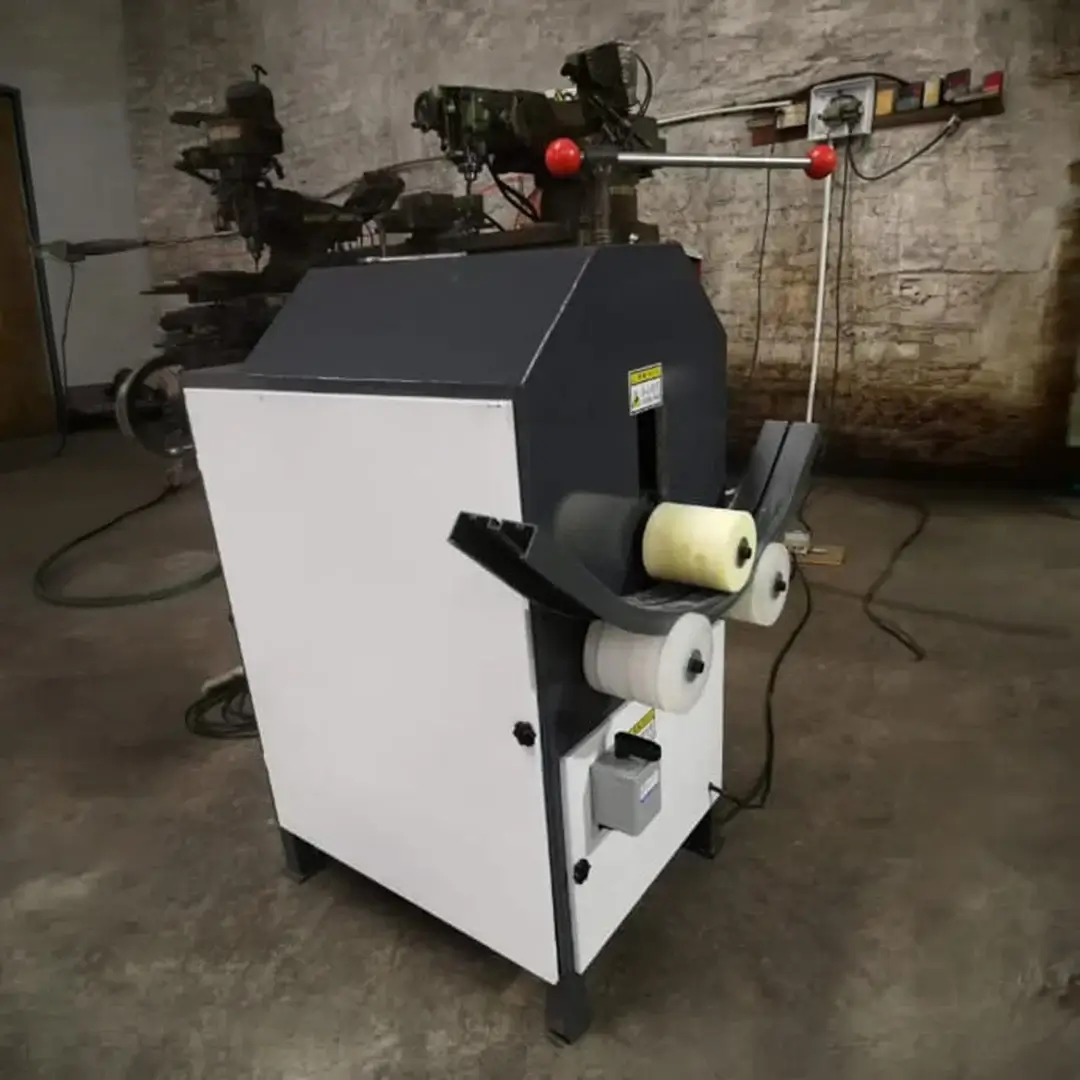

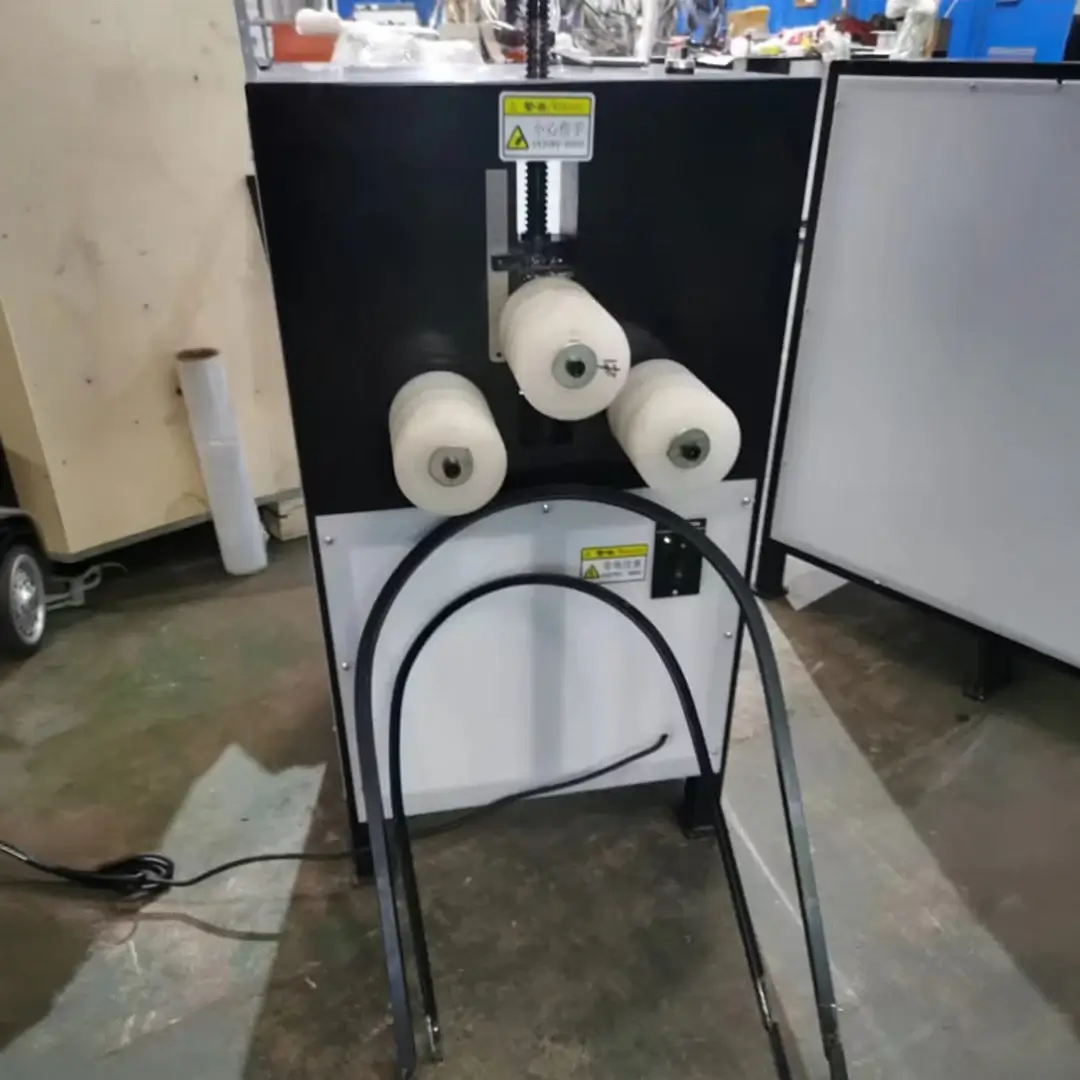

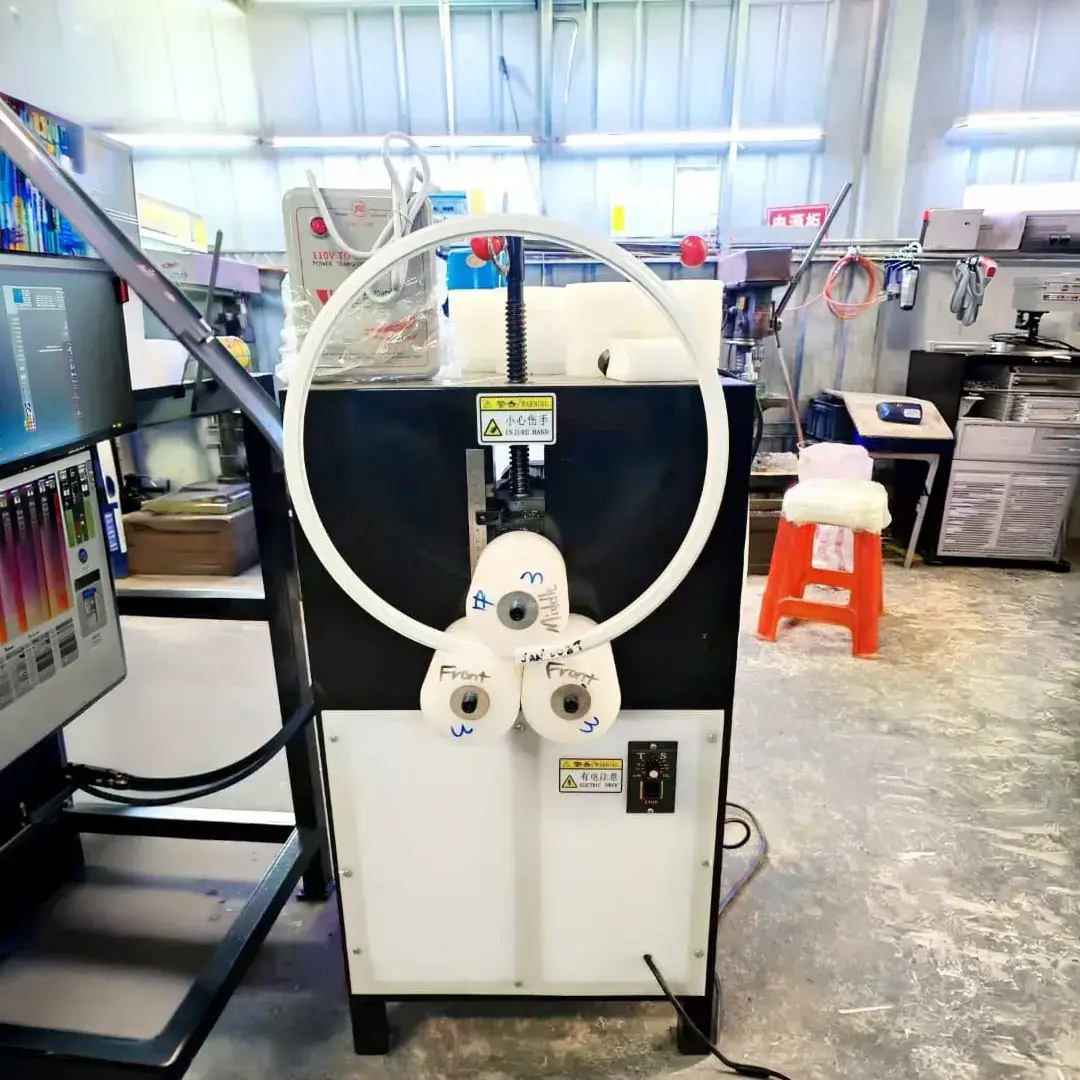

Manual Bending Machine

Apply for Vintage door,Curved and Semi-Circular Panels for Antique-Style Iron Doors and Windows. The process is straightforward and easy to understand, allowing for quick mastery.

Specification:

  • Power Supply Voltage: 220VA C50HZ
  • Motor power：300W
  • Variable speed：90-1440 RPM
  • Rollers：Custom-made
  • Rollers dia：100mm
  • Rollers Length：117mm
  • Size：700×510×1050mm
  • Weight：75KG
Get Quote

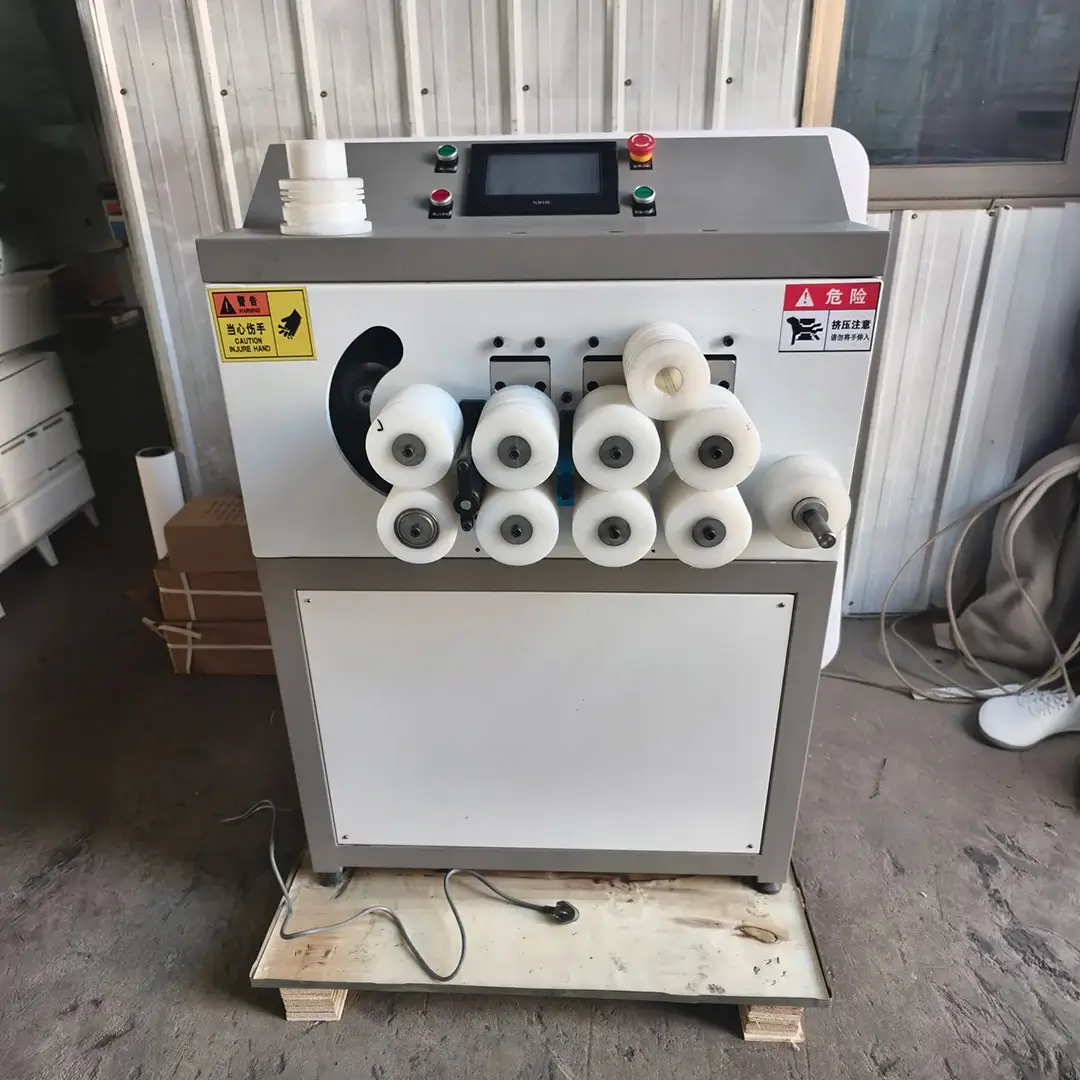

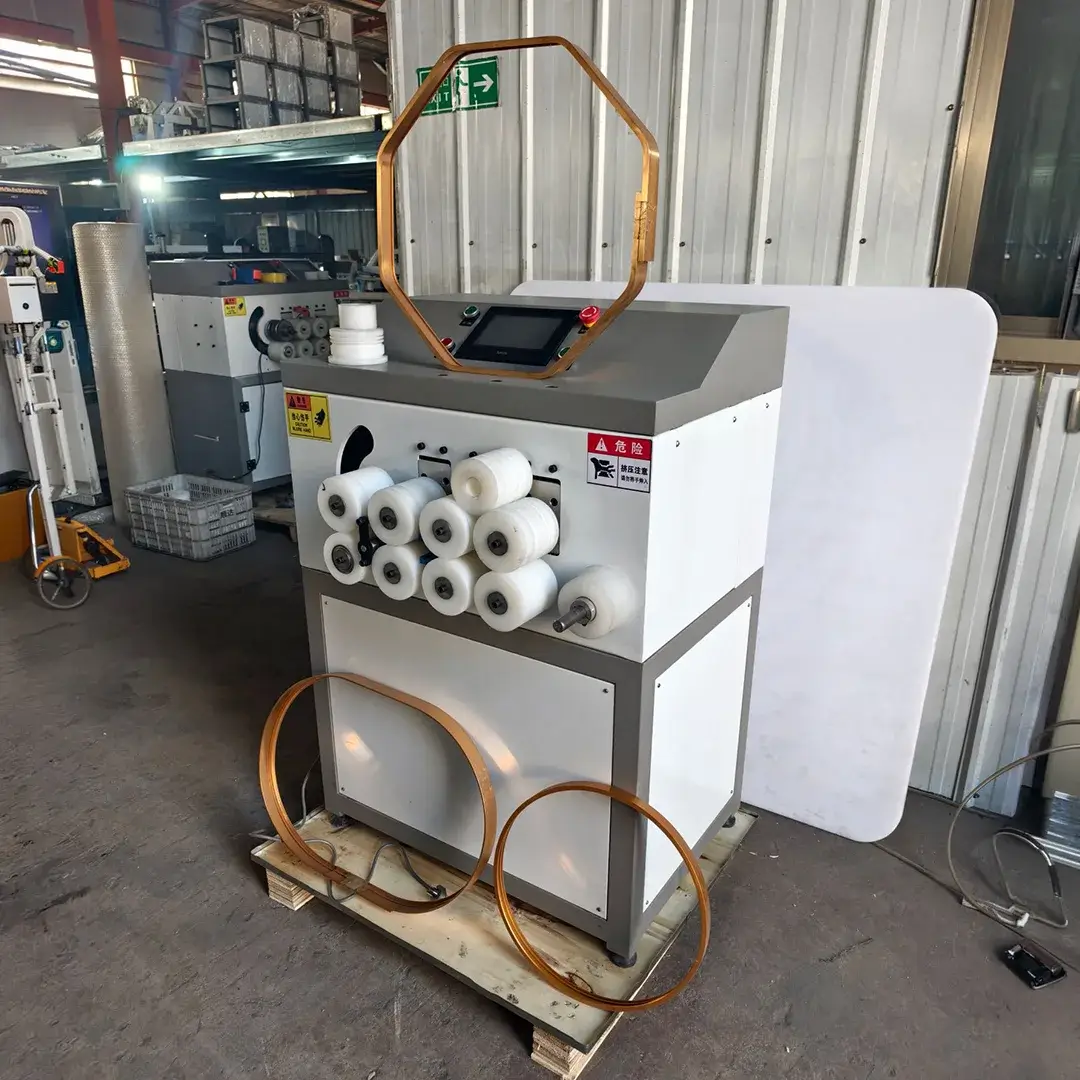

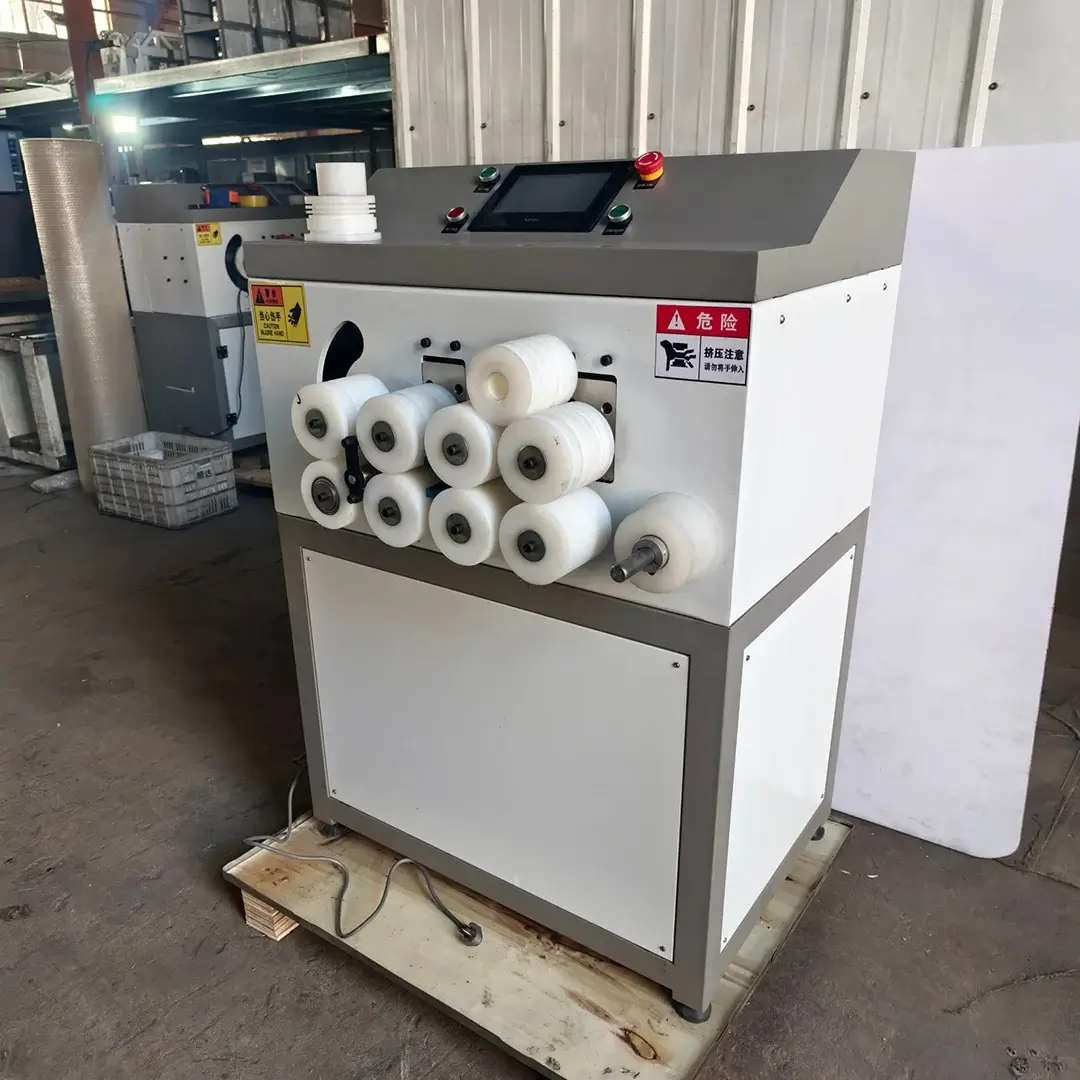

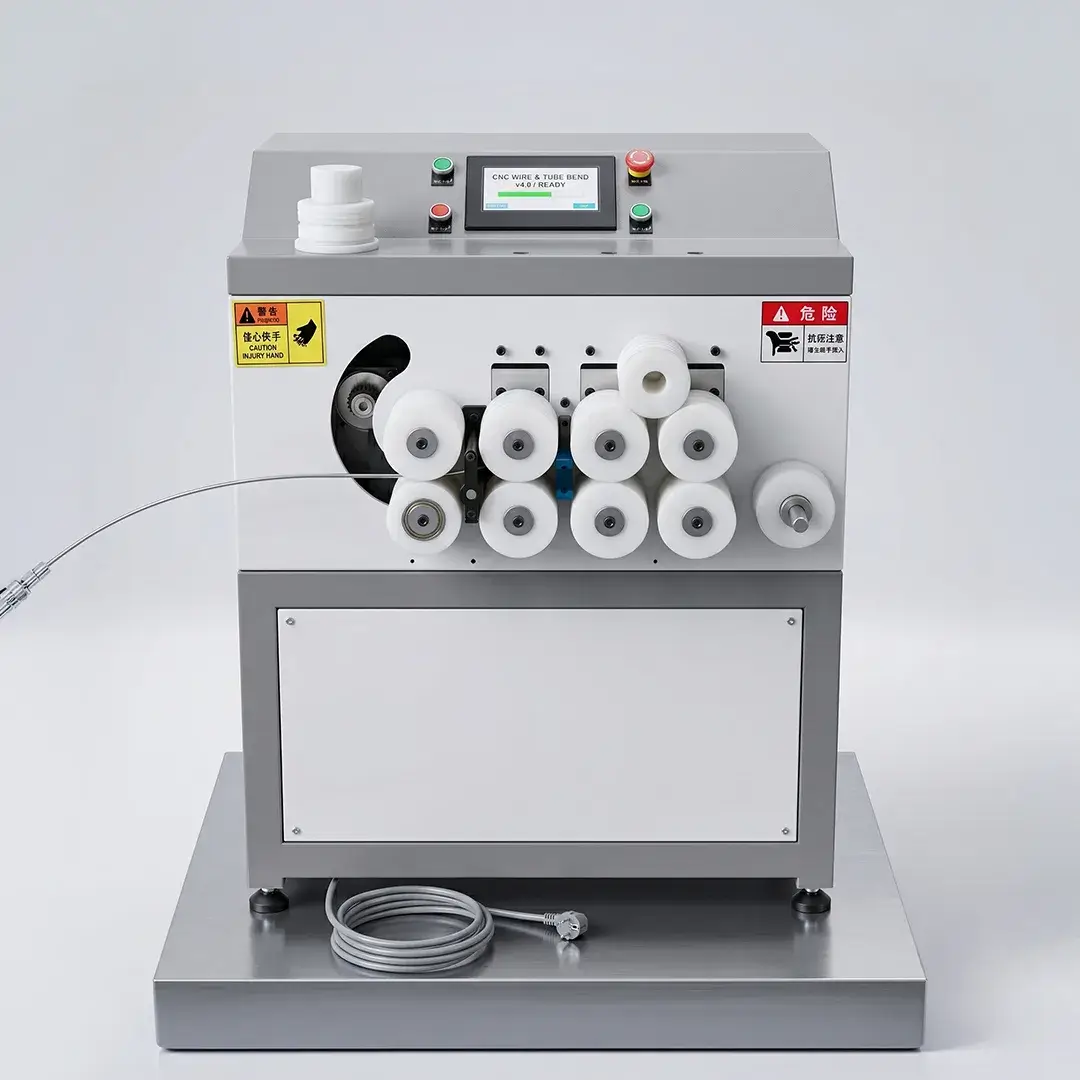

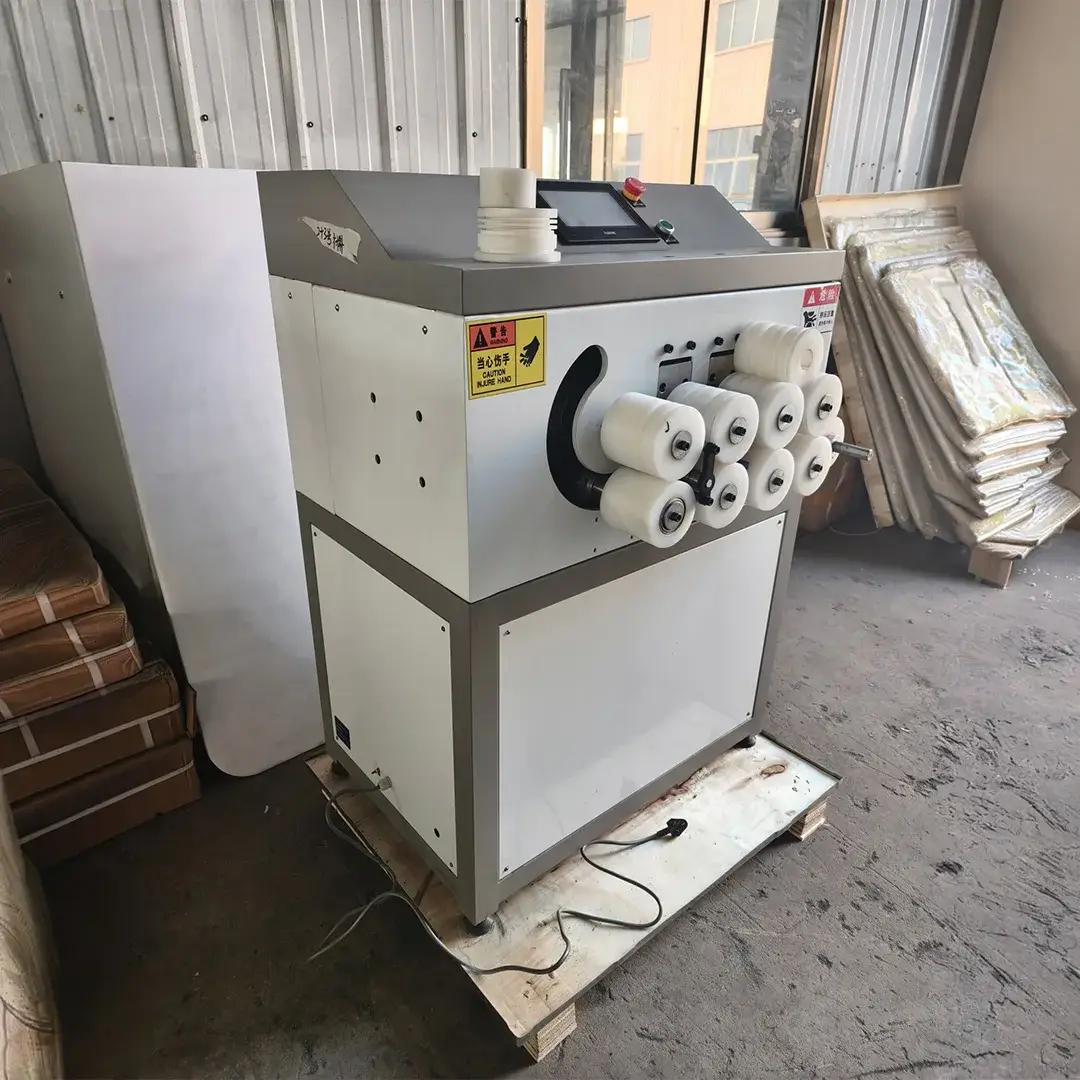

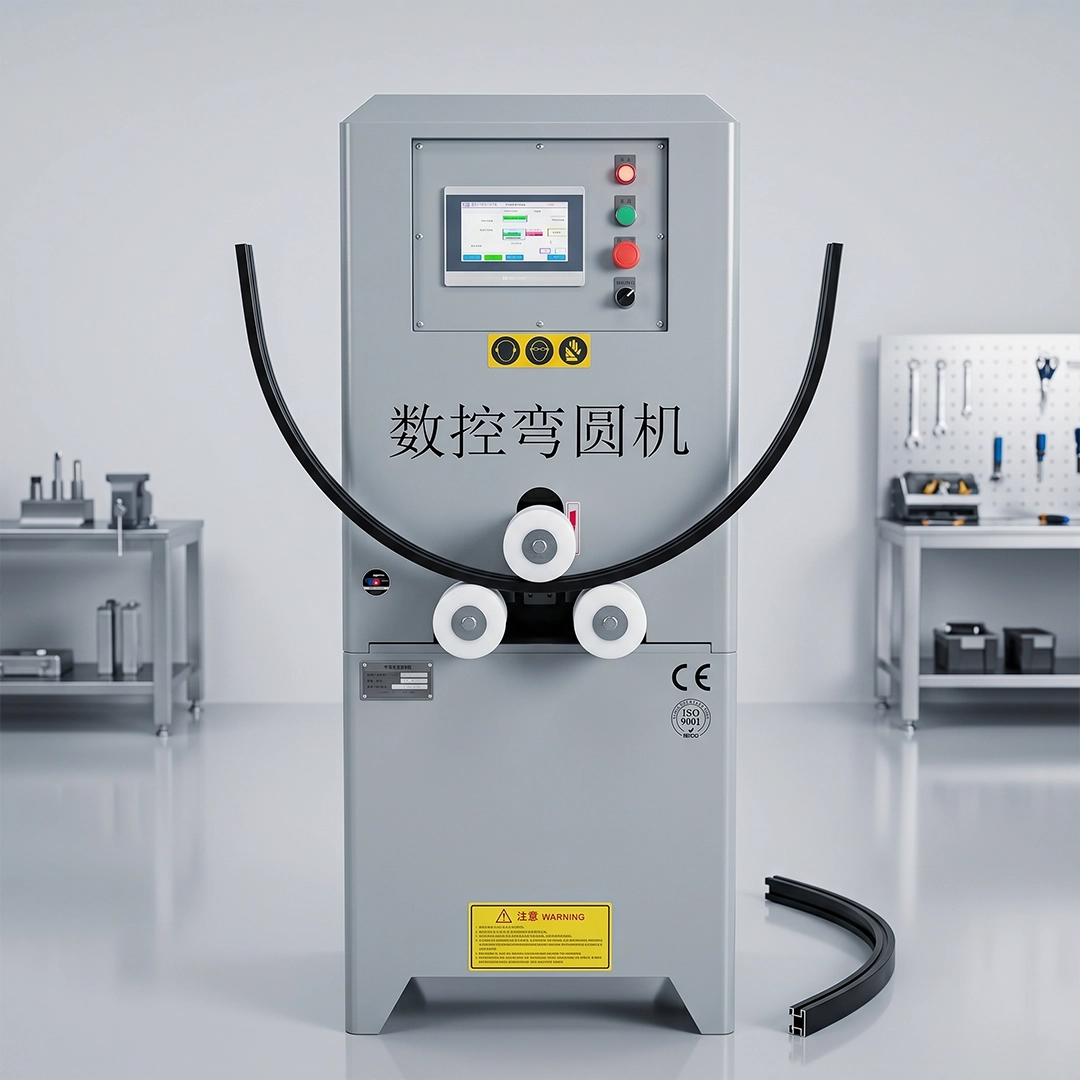

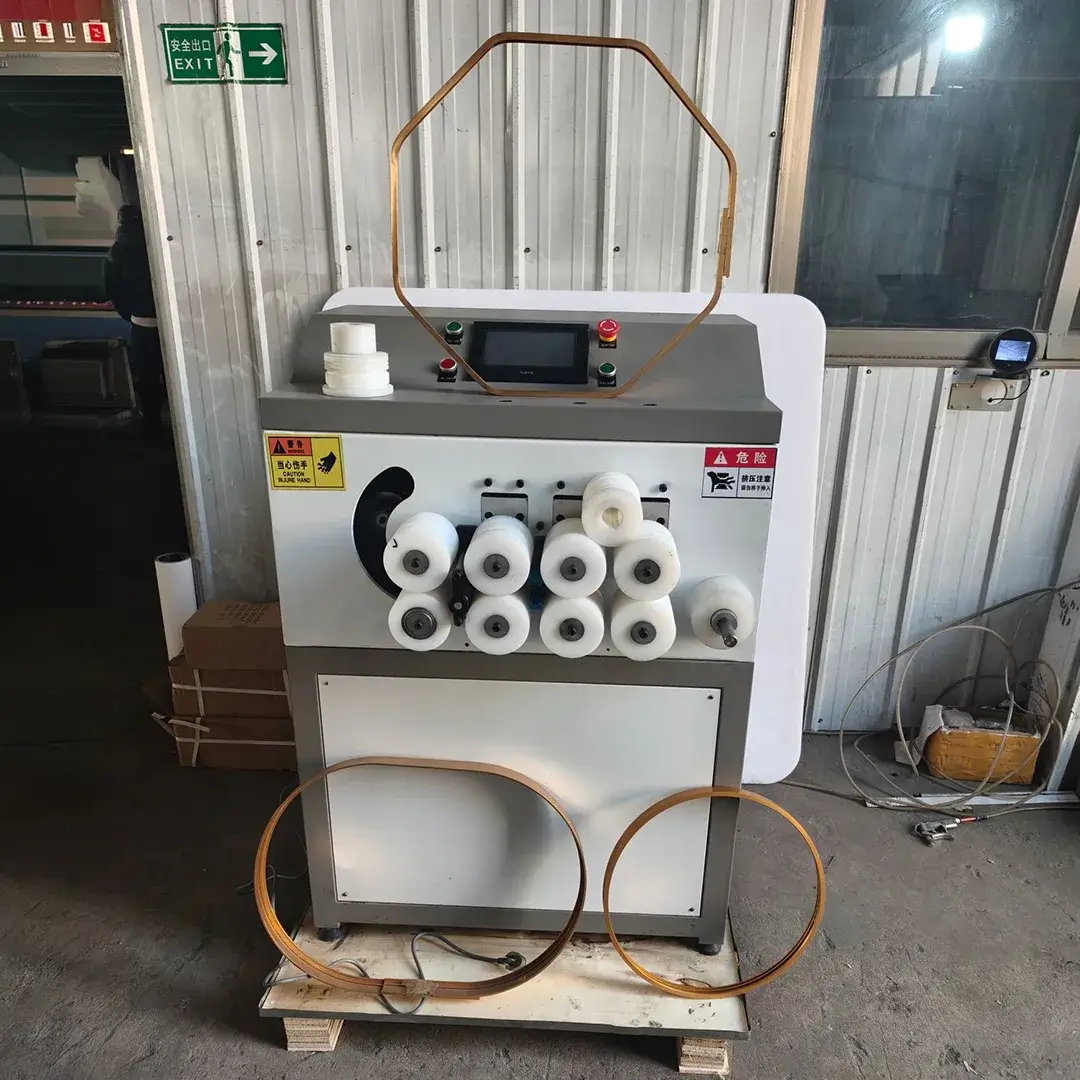

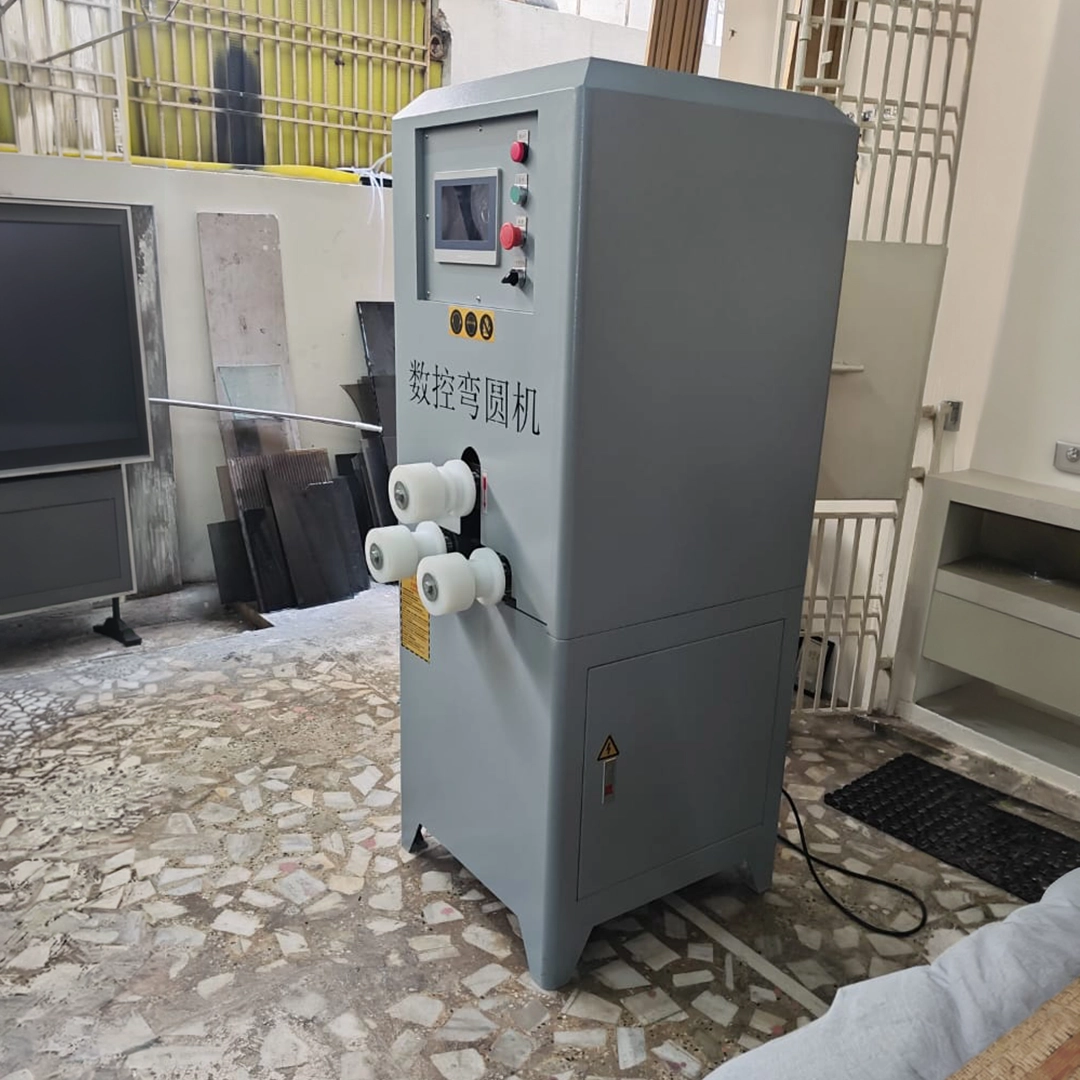

CNC Bending Machine

CNC Bending Machine: Used for painting special-shaped frame, smart mirror, light box, and other industries of heterosexual bending. The mould is customized according to the profile, and the stainless steel mould can be customized with iron material.

Features

  • 8 Major Designs & Custom Gallery

Specifications

  • Body Size: 80x70x115
  • Weight: 200 KG
  • Voltage: 220V
  • Electric Machinery: 2 Servo Motors
  • Reducer: 2 Pcs

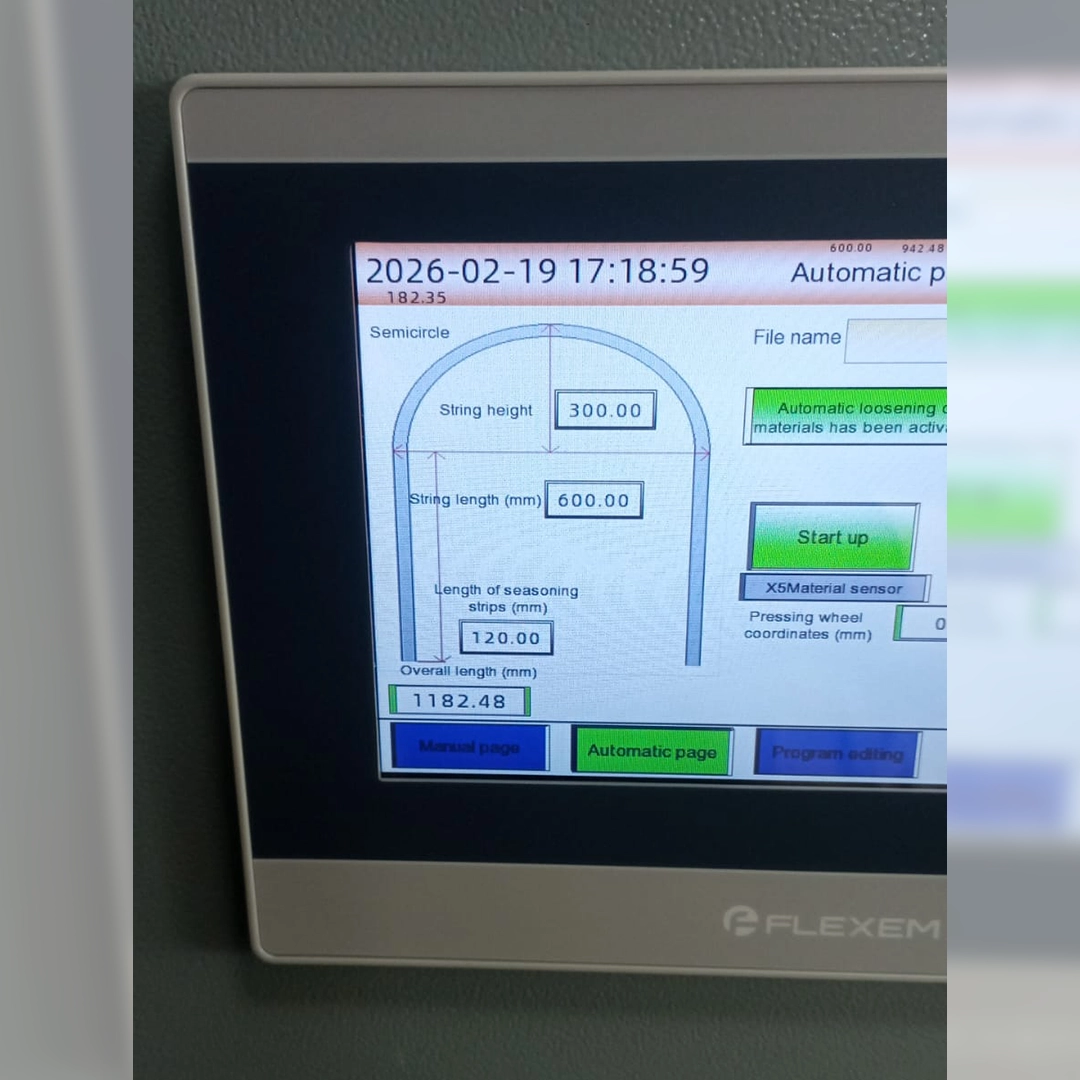

  • Monitor: Touch Screen
  • System: PLC
  • Operation Modes: Mannual & Automatic
  • Mould Material: Polythene
  • Feeding Speed: 0-20m/min
  • Air Pressure: 6-8P
  • Bending Shapes: 8+ Custom Shapes
Get Quote

16/45 CNC Bending Machine

Apply for Vintage door,Curved and Semi-Circular Panels for Antique-Style Iron Doors and Windows. The process is straightforward and easy to understand, allowing for quick mastery.

Specification:

  • Power supply voltage: 220V AC 50HZ
  • Drive motor: 85 open-loop
  • Equipment power: 1000W
  • Screen: 7-inch screen (Fanyi)
  • System: Yunchen System
  • Storage data: 100 groups
  • Roller mold: Customized according to the material
  • Roller diameter: 100mm
  • Roller length: 117mm
  • Roller inner hole: 35mm
  • Dimensions: 580×730×1530mm
  • Weight: 200KG
Get Quote

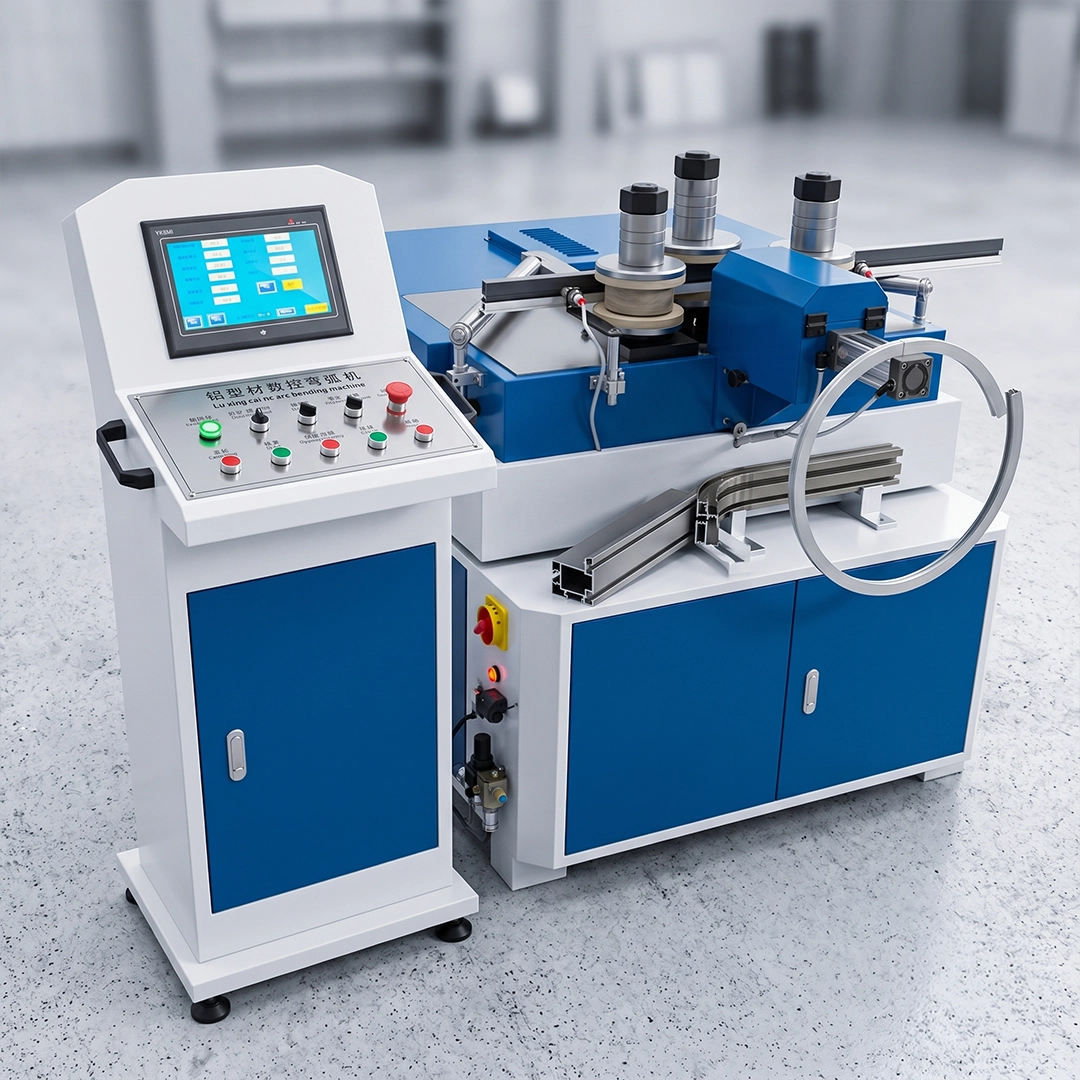

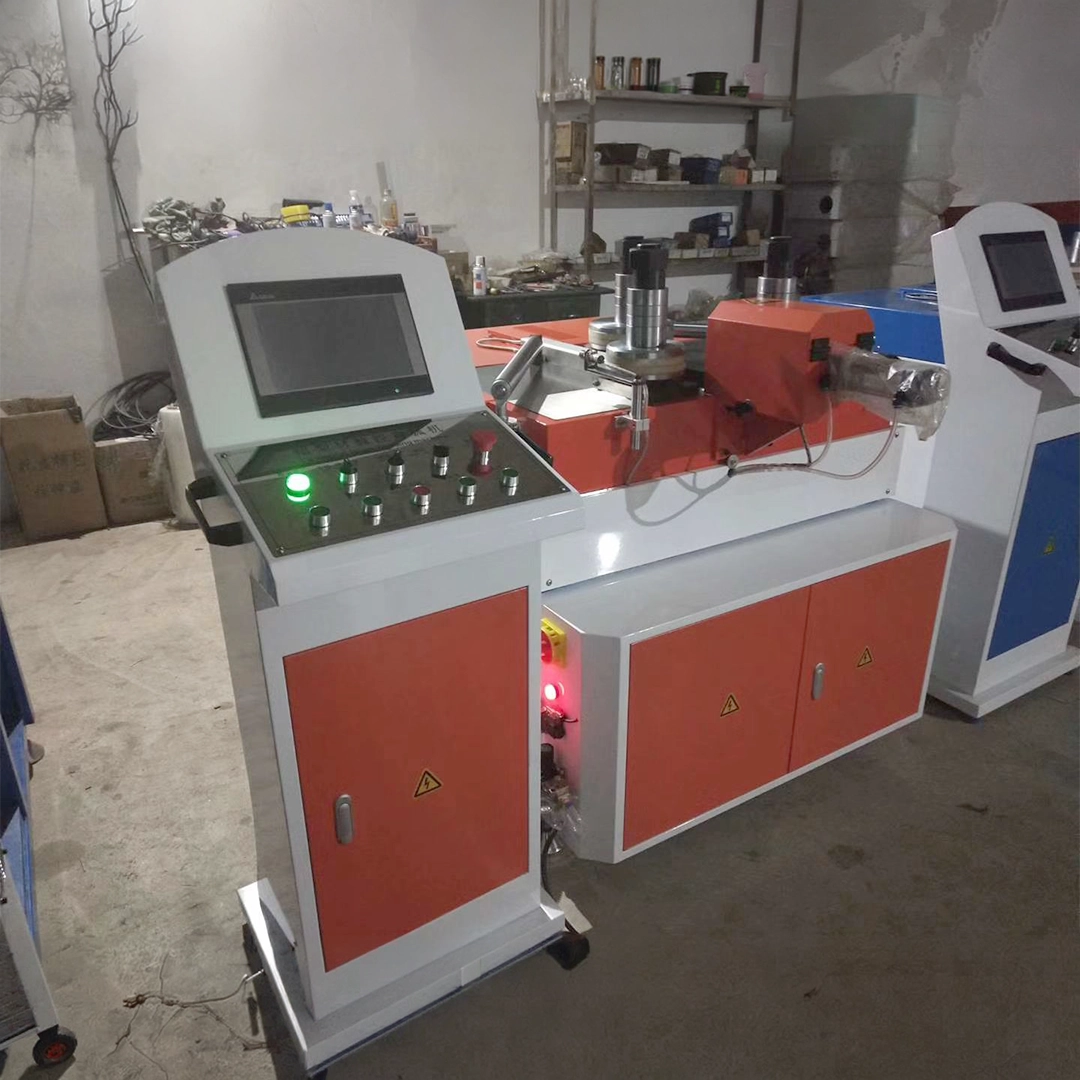

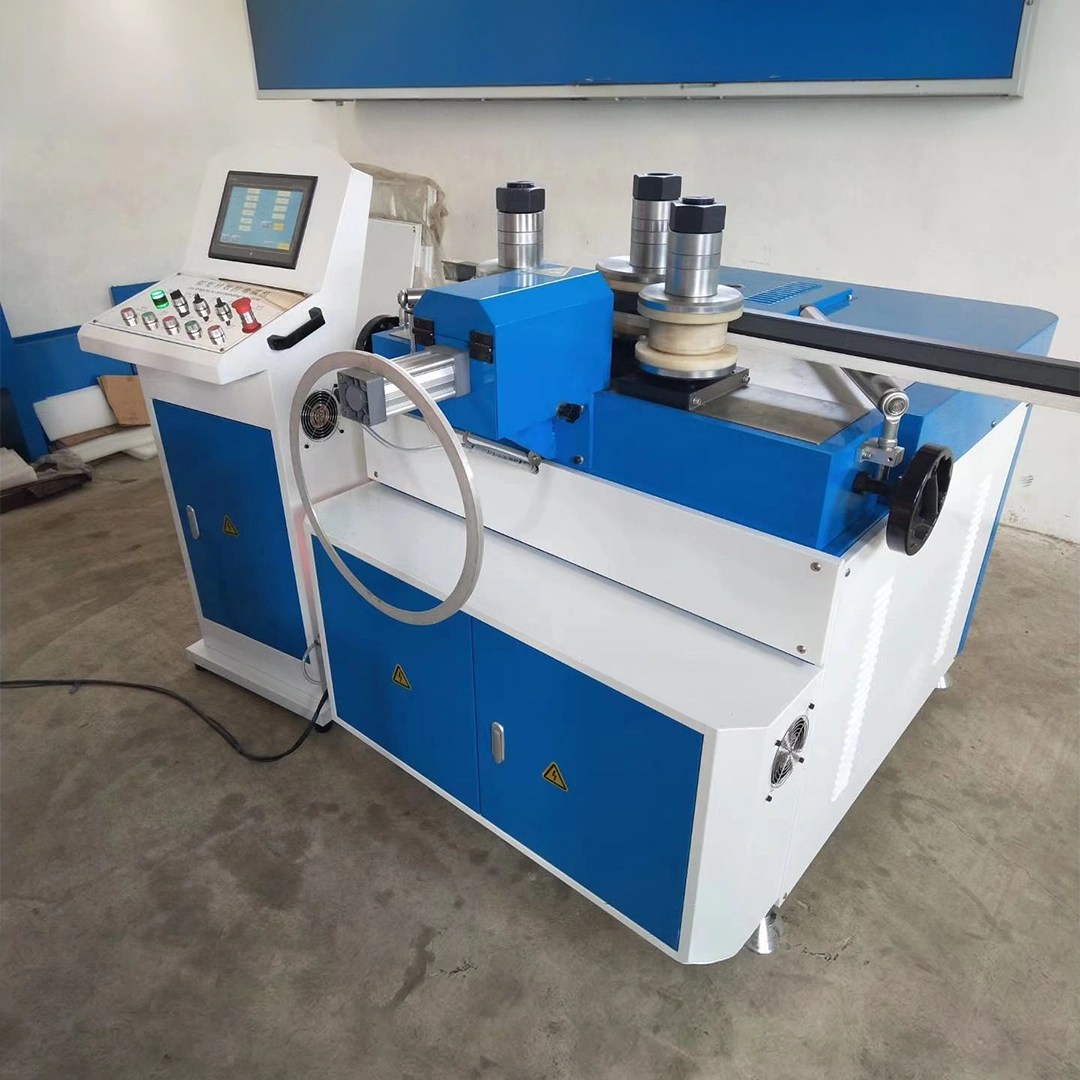

Heavy Duty Aluminium Profile Bending Machine

Specifications

  • Minimum arc radius: 200mm
  • Roller diameter: 60mm
  • Processing profile width: 150mm
  • Maximum diameter of the roller: 200mm
  • Center distance of the fixed wheel: 350mm
  • Maximum stroke of the top wheel: 220mm
  • Roller speed: 1—8r/min
  • Motor power: 6KW
  • Working air pressure: 0.2Mpa
  • Power supply: three-eathlon four-wire 380V 50HZ
  • Top wheel positioning accuracy: 0.02mm
  • Cylinder thrust: 20T (200Mpa)
  • Machine size: 1600mmX1400mmX1450mm
  • Machine weight: 750kg
Get Quote

Stainless Steel Profile Bending Machine

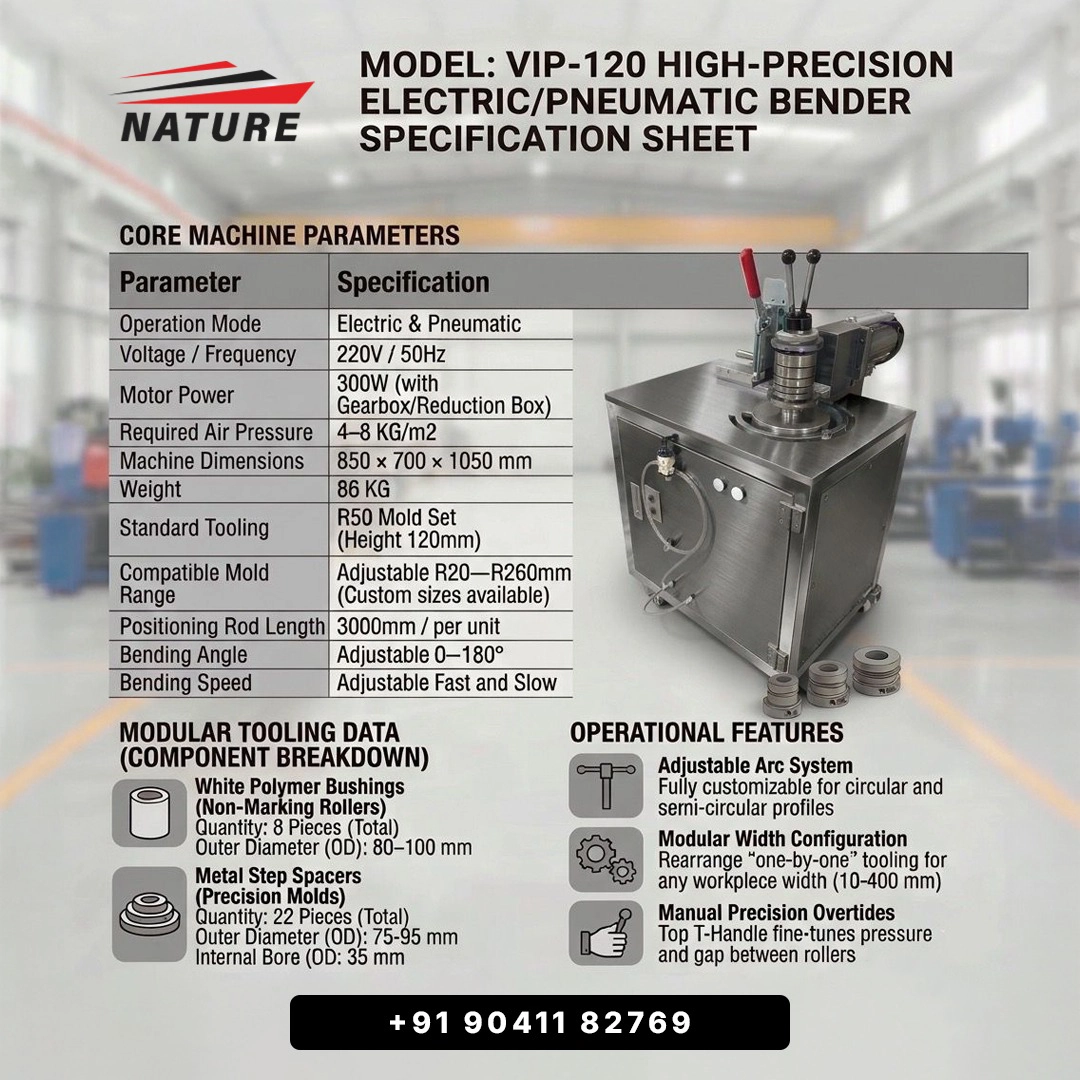

Specification (Model 120):

  • Operation Mode: Electric & Pneumatic
  • Voltage / Frequency: 220V / 50Hz
  • Motor Power: 300W (With Gearbox / Reduction Box)
  • Required Air Pressure: 4-8KG/m2
  • Machine Dimensions: 850 x 700 x 1050 mm
  • Weight: 86 KG

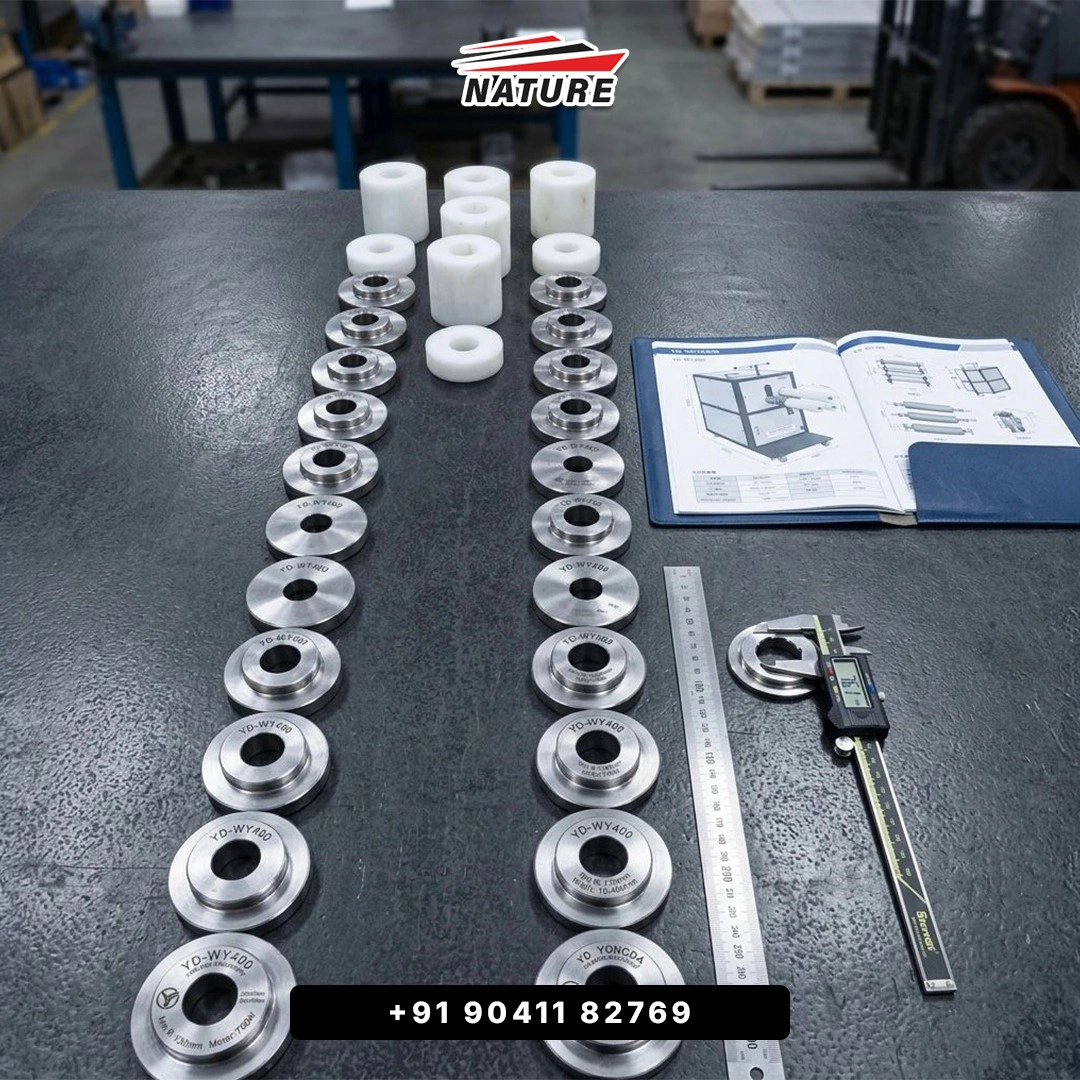

  • Standard Tooling: Adjustable R20-R260 mm (Custom sizes available)
  • Positioning Rod Length: 3000 mm / per unit
  • Bending Angle: Adjustable 0-180 degrees
  • Bending Speed: Adjustable fast and slow

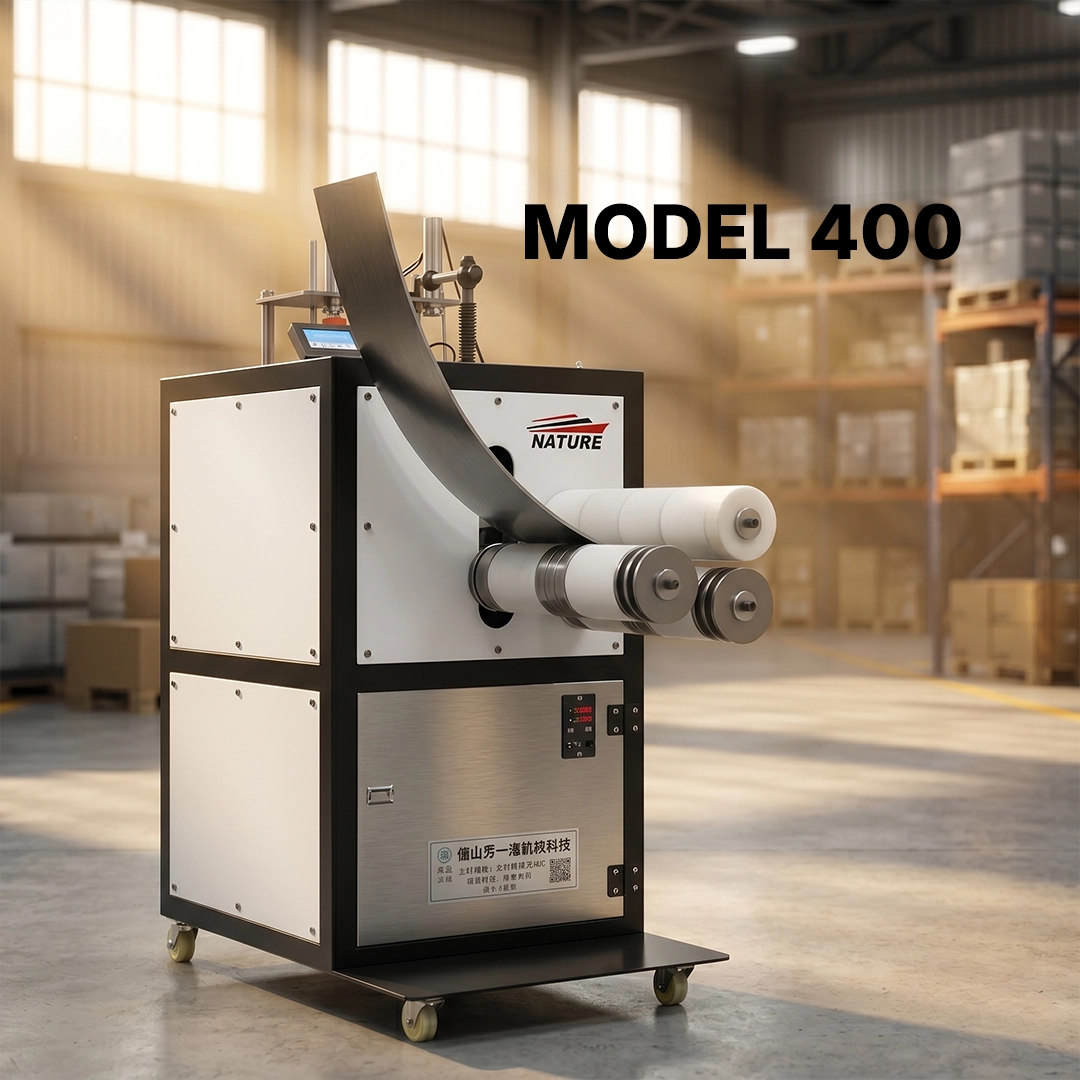

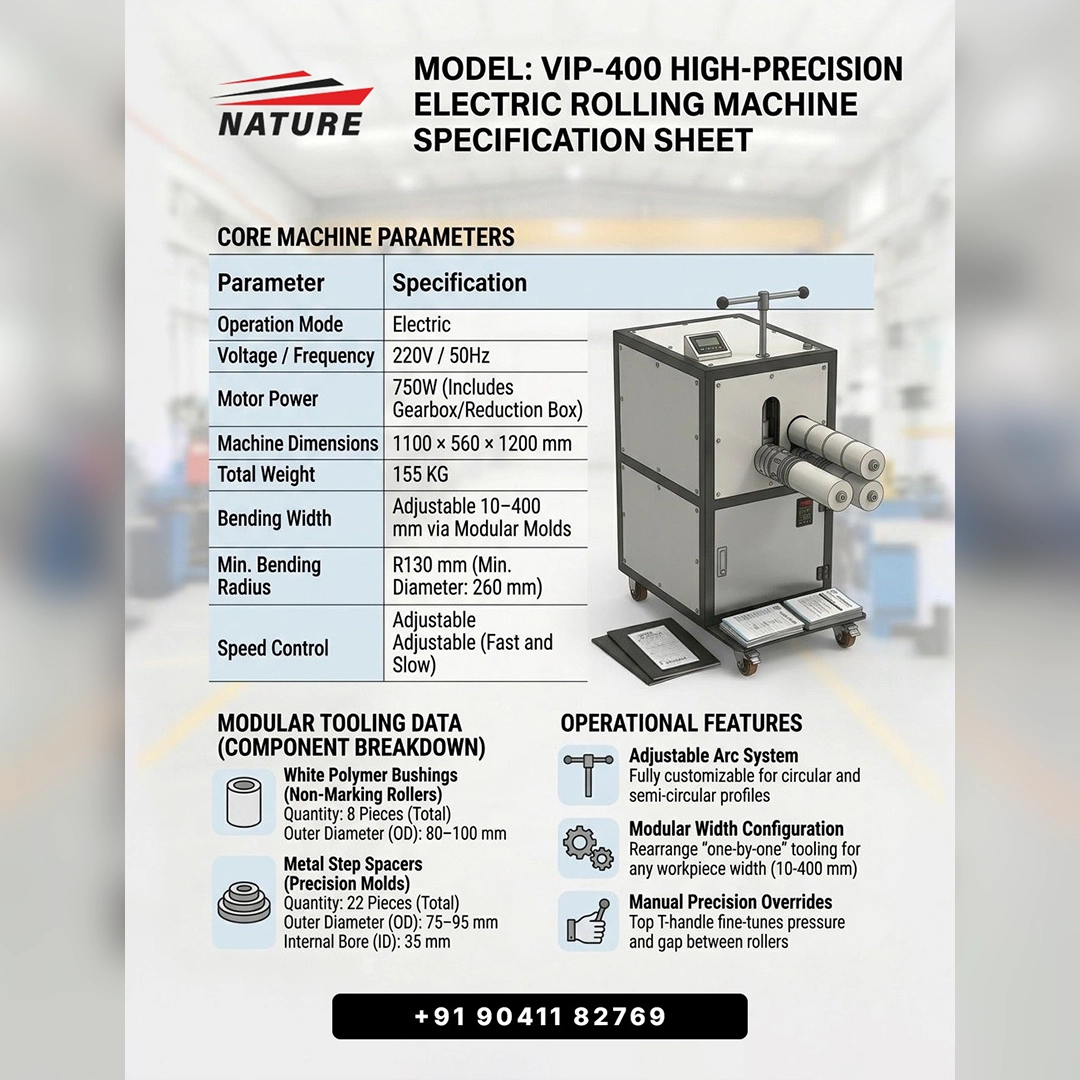

Specification (Model 400):

  • Operation Mode: Electric
  • Voltage / Frequency: 220V / 50Hz
  • Motor Power: 750W (Inclued Gearbox / Reduction Box)
  • Machine Dimensions: 1100 x 560 x 1200 mm
  • Weight: 155 KG
  • Bending Width: Adjustable 100-400 mm via Modular Molds
  • Min Bending Radius: R130 mm (Min Diameter: 260 mm)
  • Speed Control: Adjustable fast and slow
Get Quote

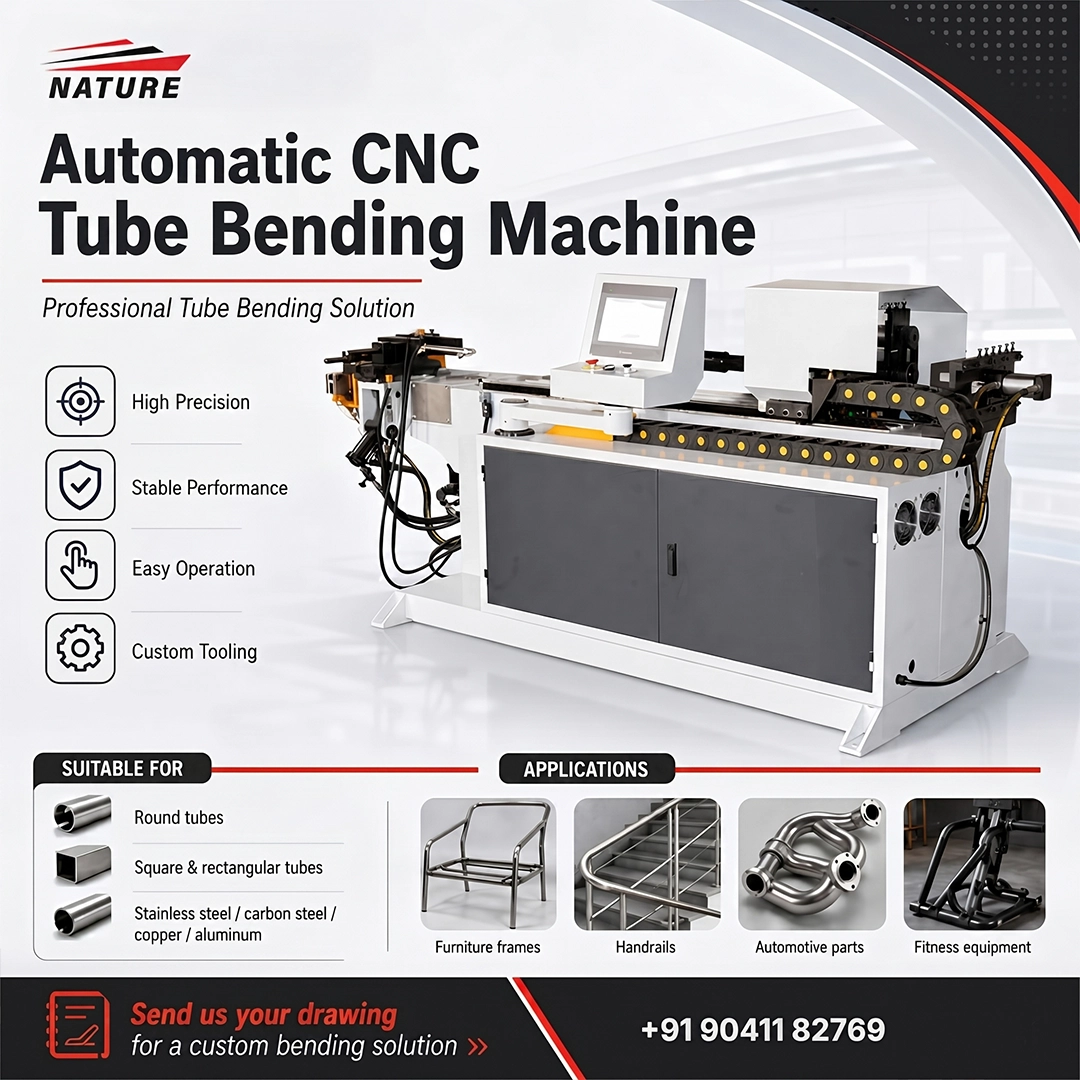

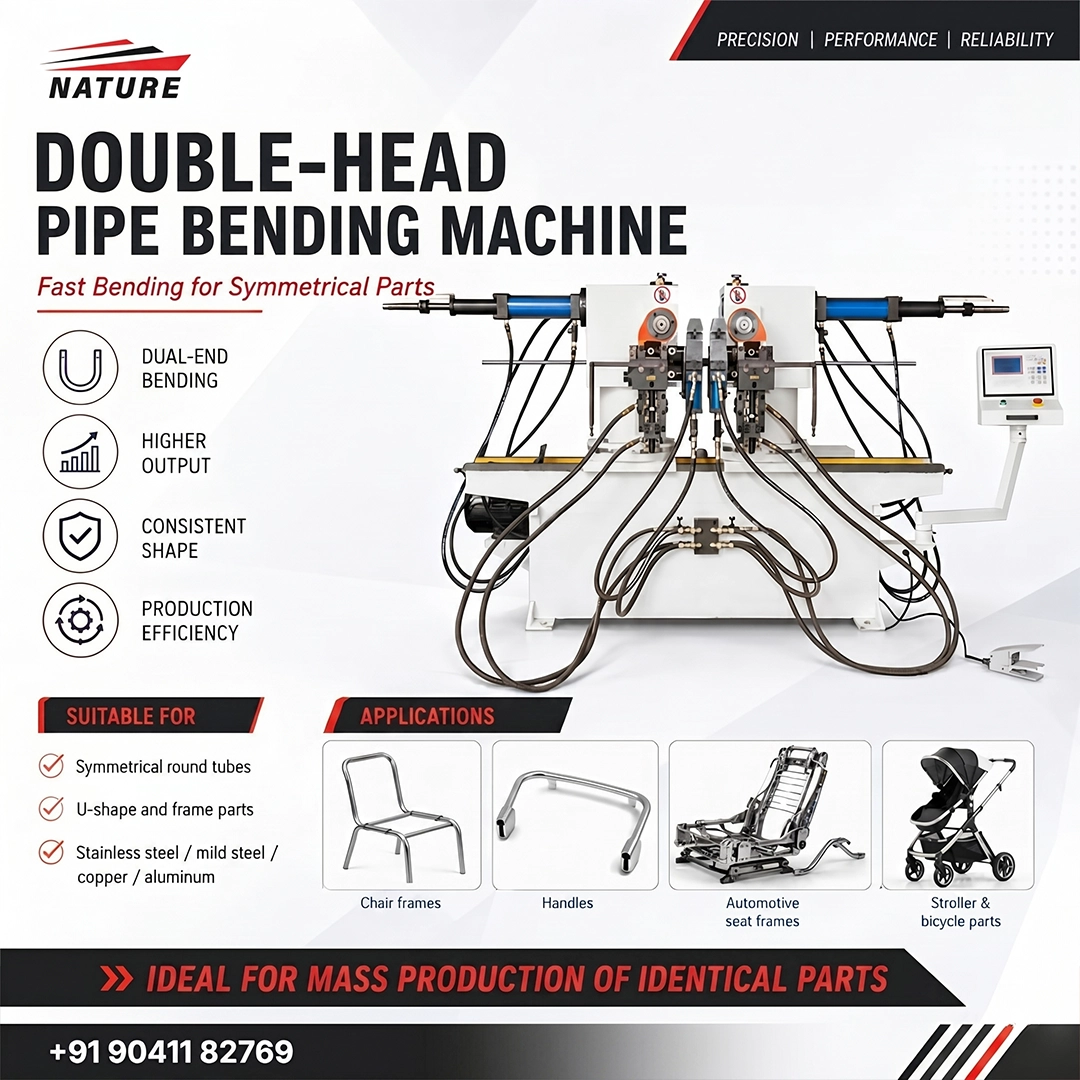

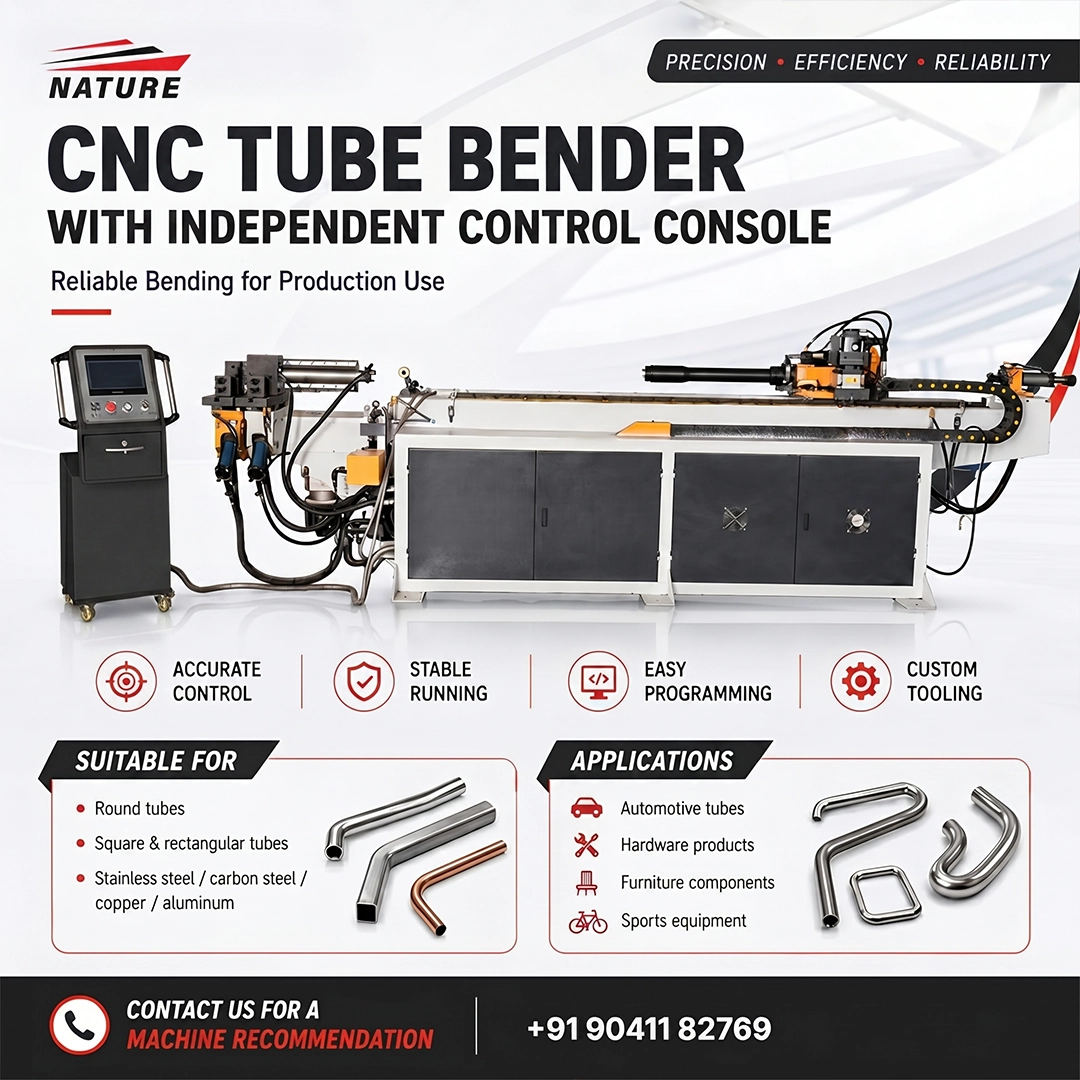

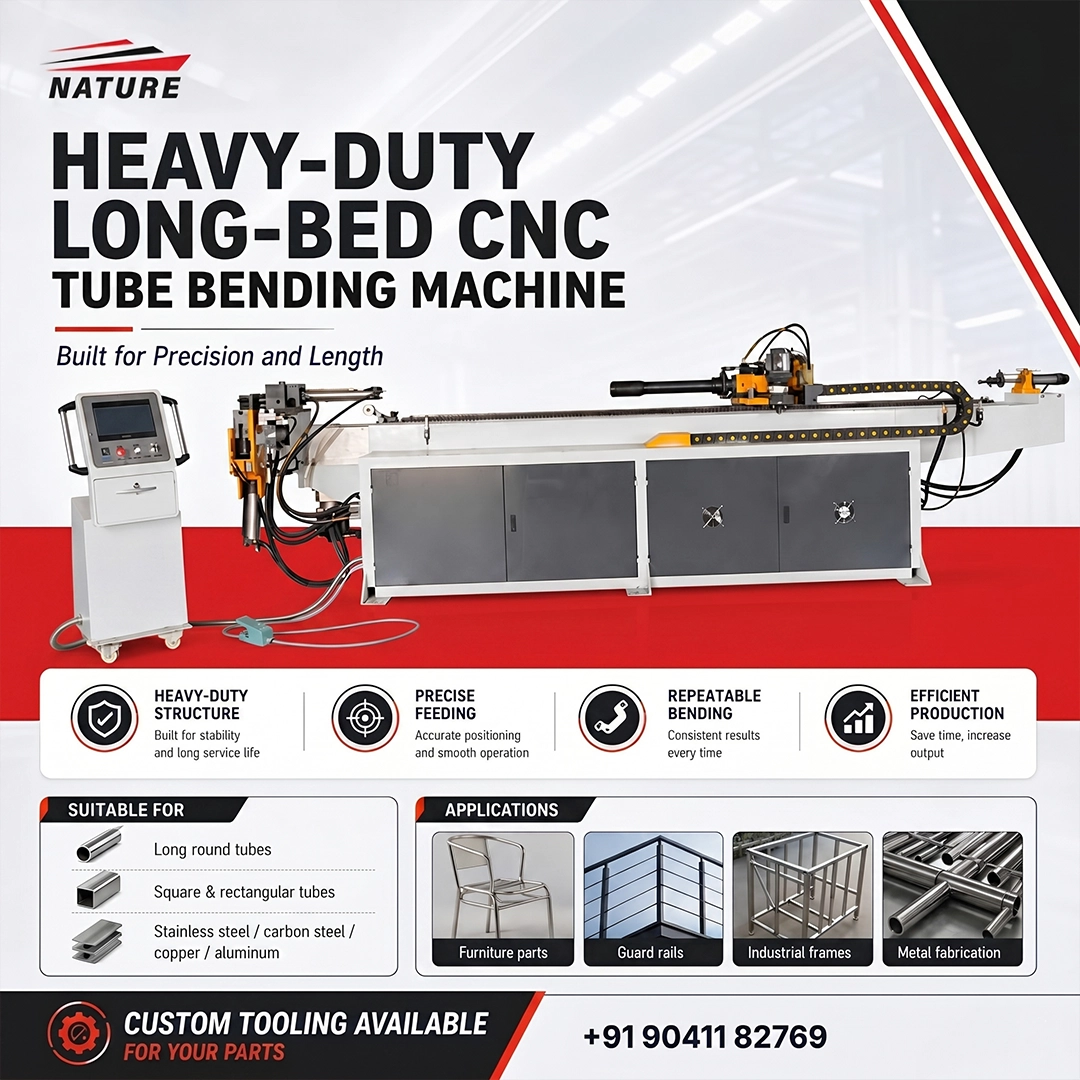

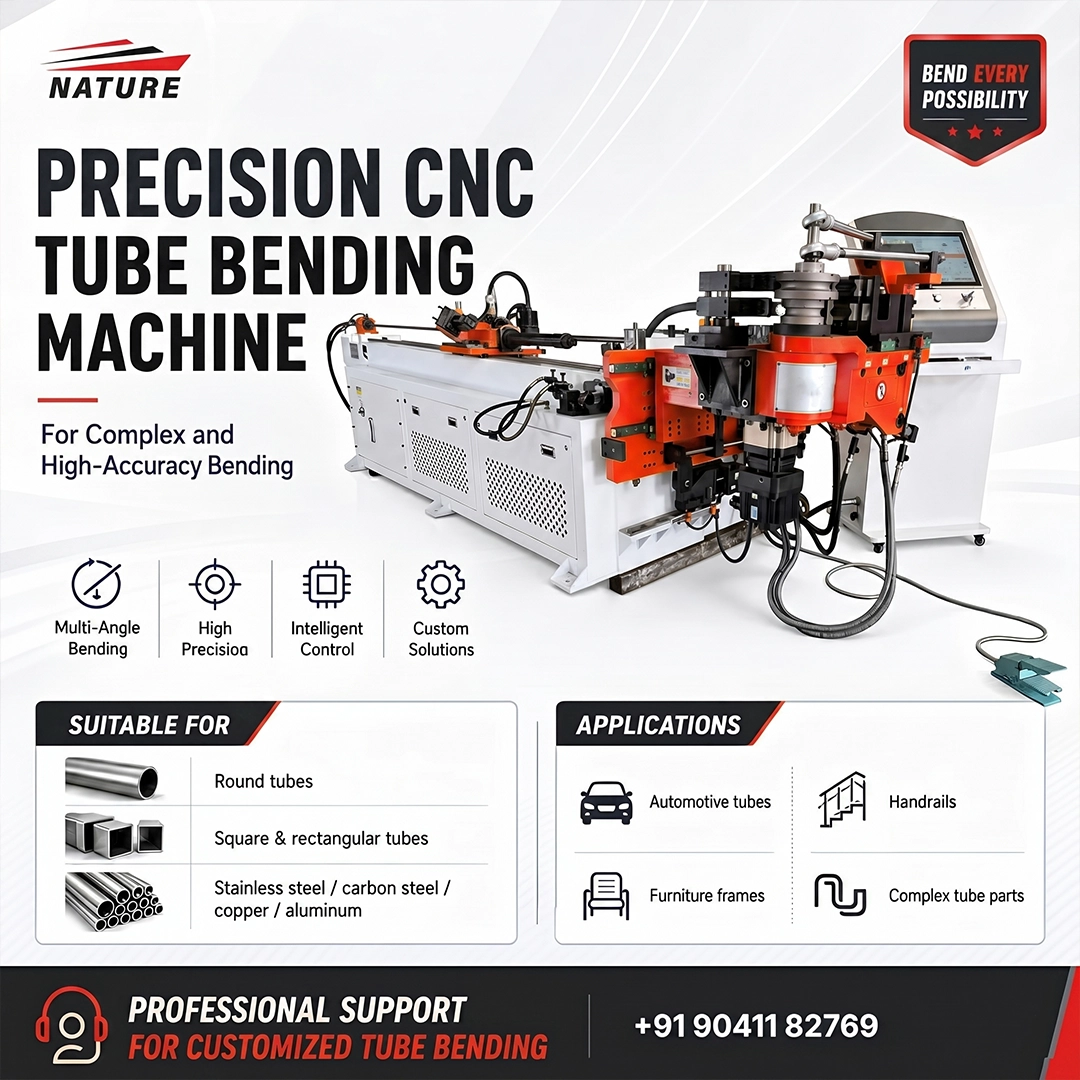

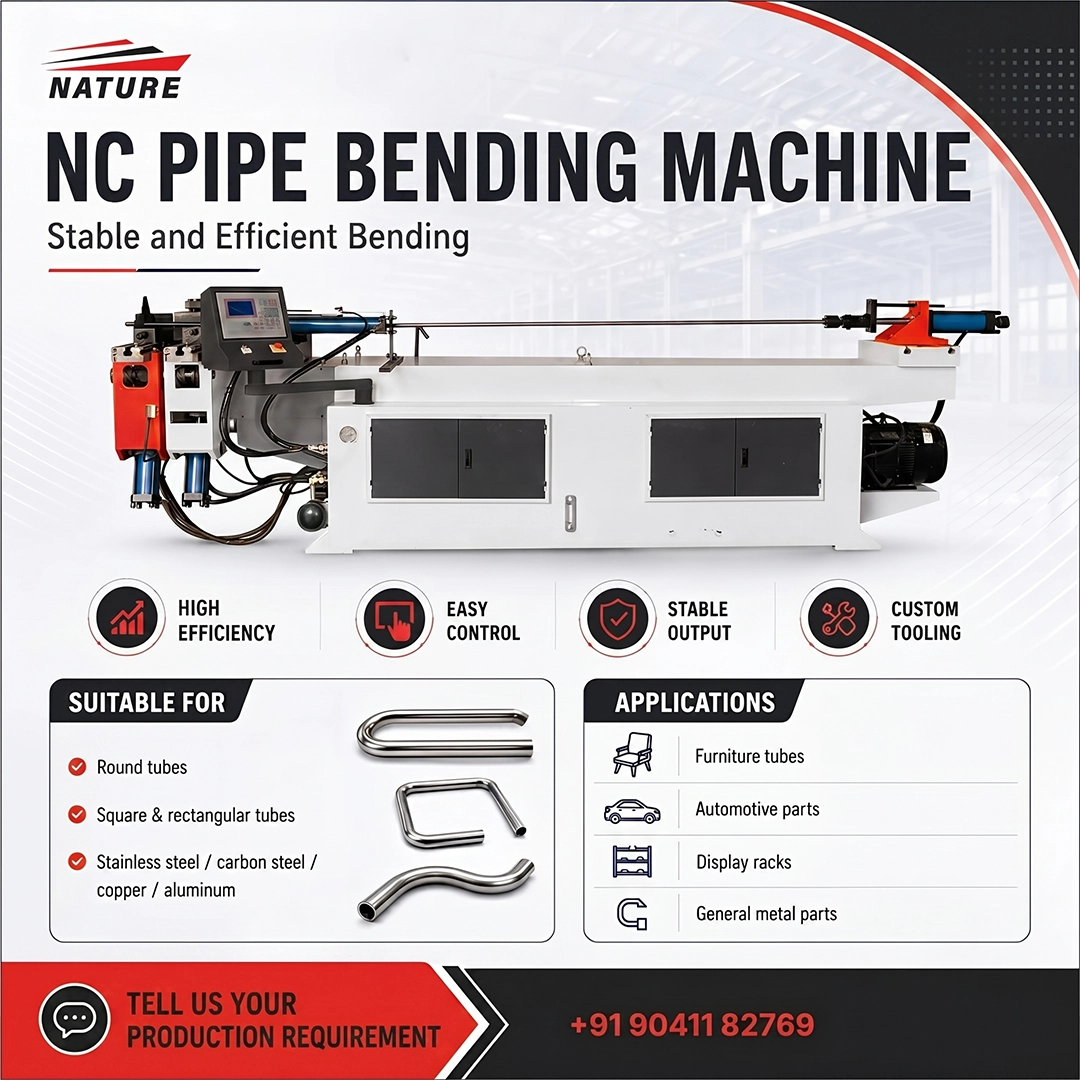

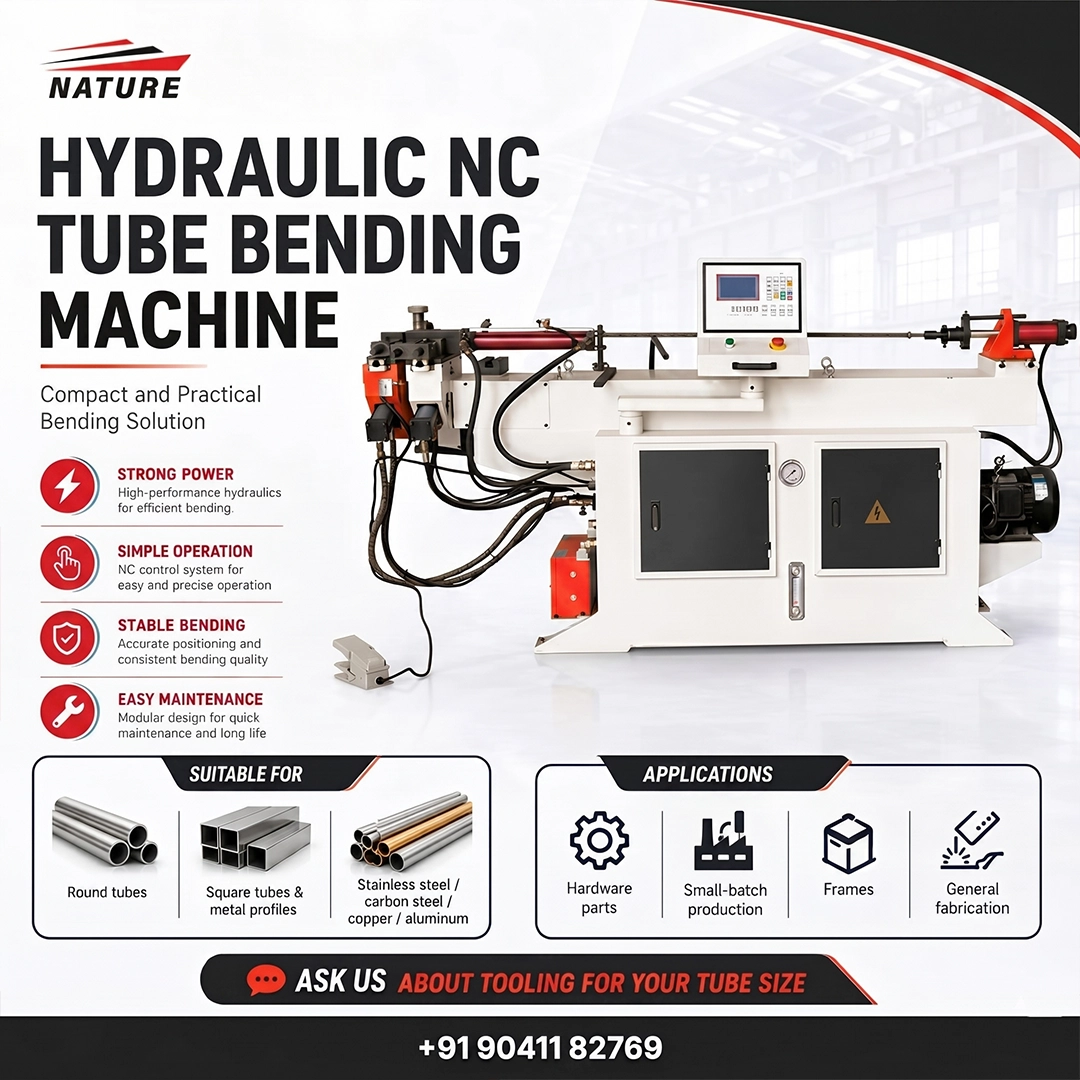

Pipe Bending Machine

Pipe Bending Machine: Used for bending various types of pipes, such as stainless steel pipes, aluminum pipes, and iron pipes. It is widely used in industries like construction, furniture manufacturing, and automotive production for creating curved pipe structures. The machine can be equipped with different molds to accommodate various pipe diameters and bending angles, ensuring precise and efficient bending operations.
