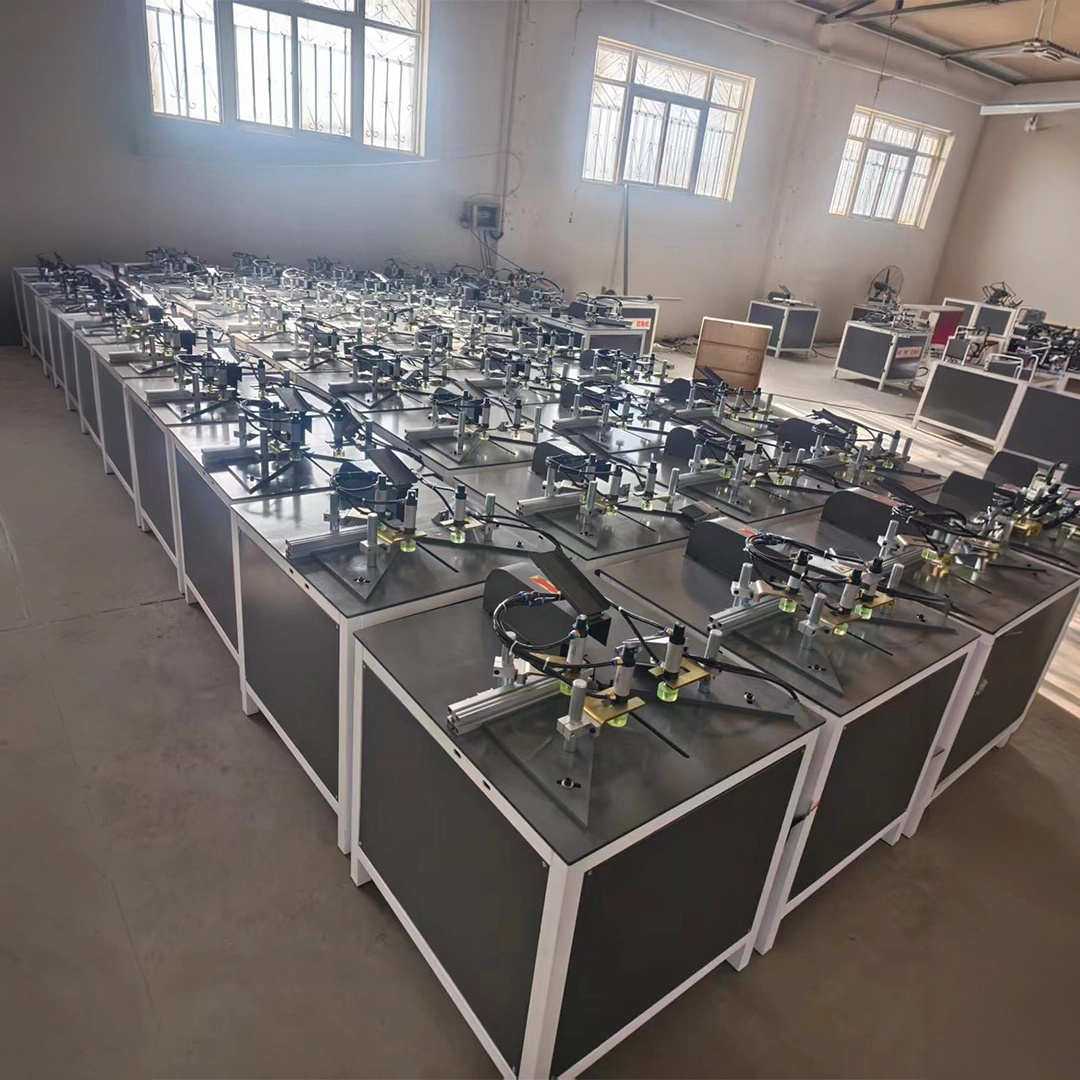

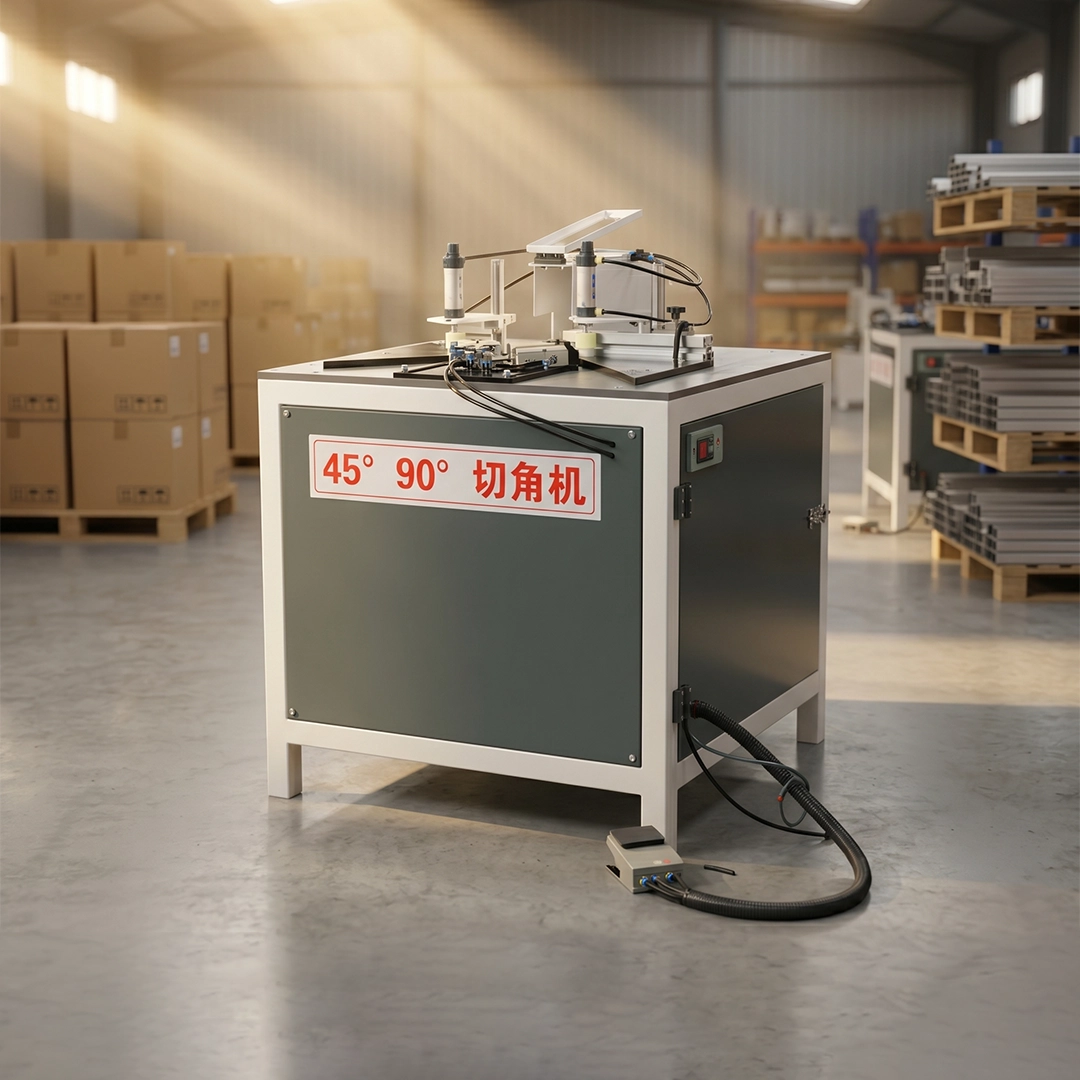

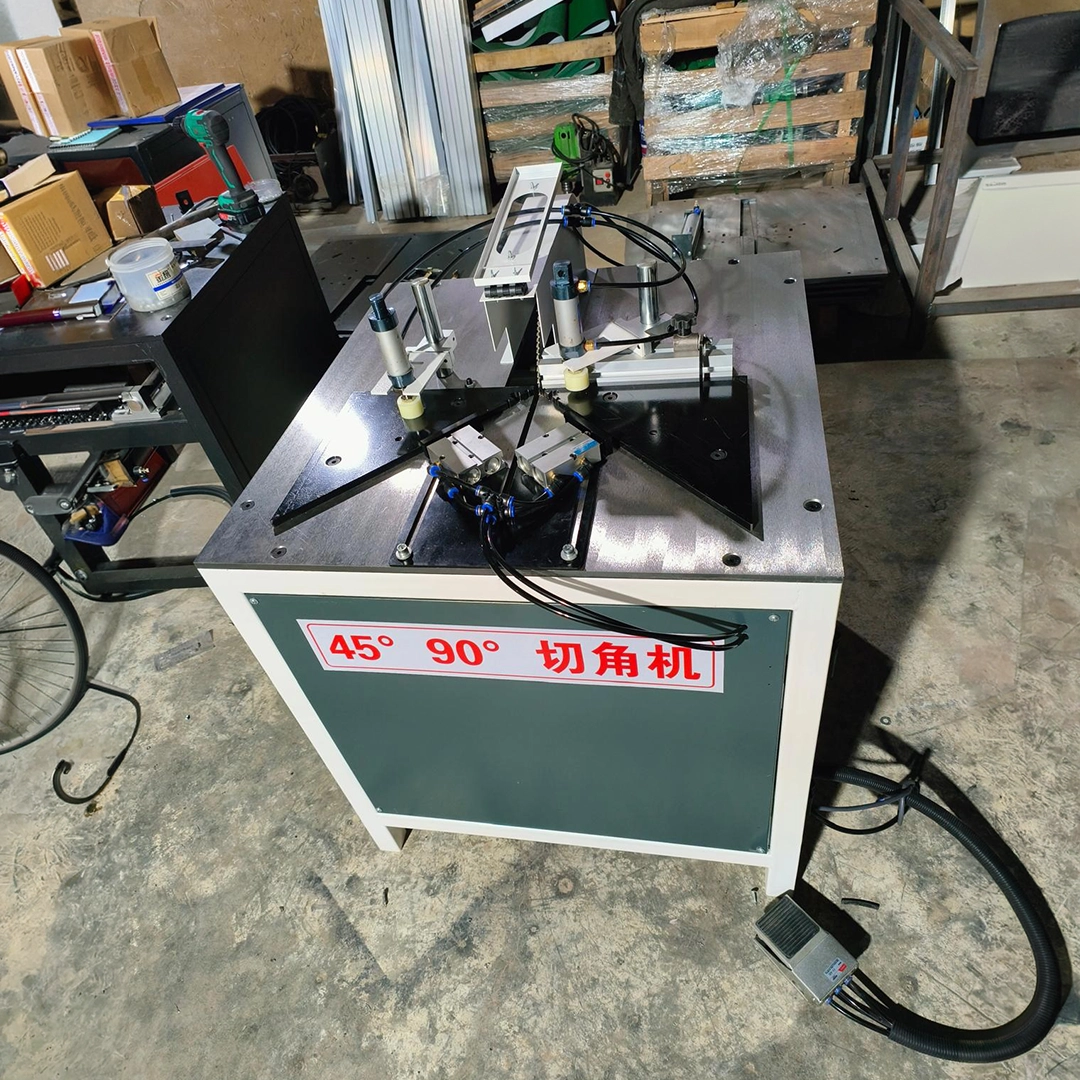

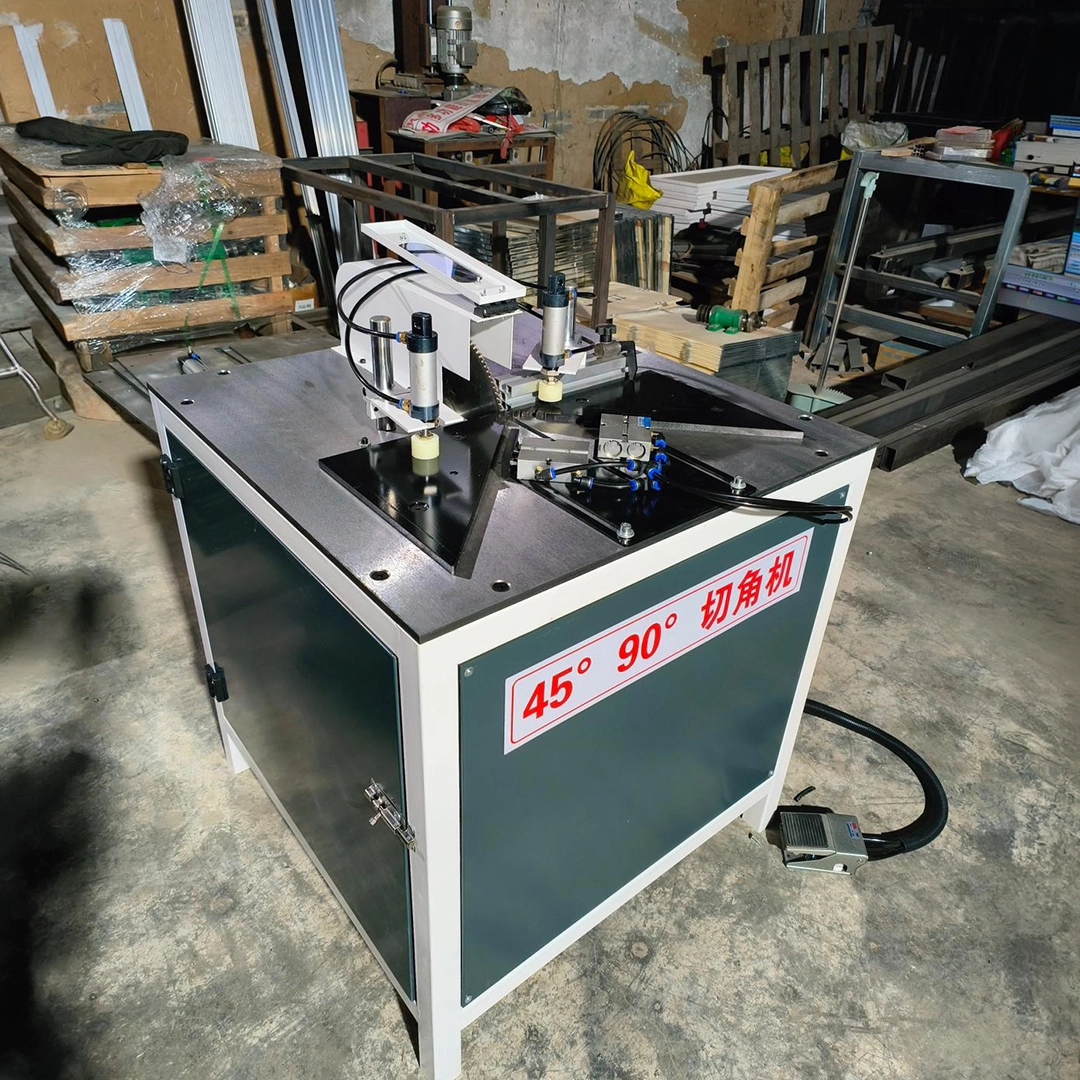

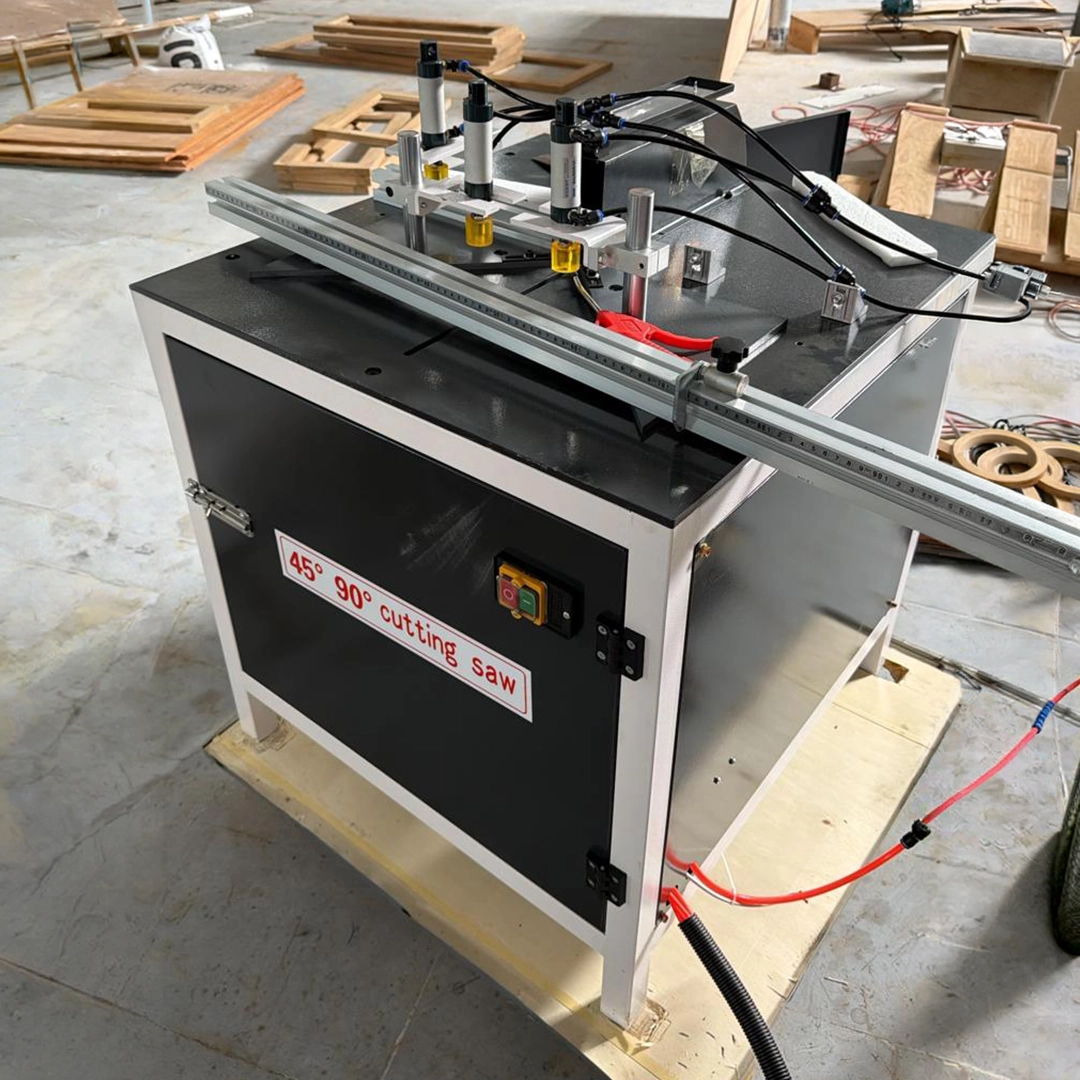

45° 90° Cutting Machine
45° 90° Cutting Machine is a versatile cutting machine designed for precision cutting of materials at both 45-degree and 90-degree angles. It is commonly used in various industries such as metalworking, woodworking, and construction for tasks like cutting pipes, tubes, profiles, and other materials.
Specification:
- Motor power: 1.5 KW
- Frequency：50 HZ
- Maximum cutting stroke：180mm
- Aluminum ruler：1000mm*40mm*40
- Dimensions：750mm*700mm*950mm
- Working form：Pneumatic electric
- Saw blade speed：600 RPM
- Operating voltage：220V / 380V
- Cut angle：45° / 90°
- Maximum cutting thickness：95mm
- Saw blade size：10-14 inches
- Weight：150 KG
- Operation form：Semi-Automatic

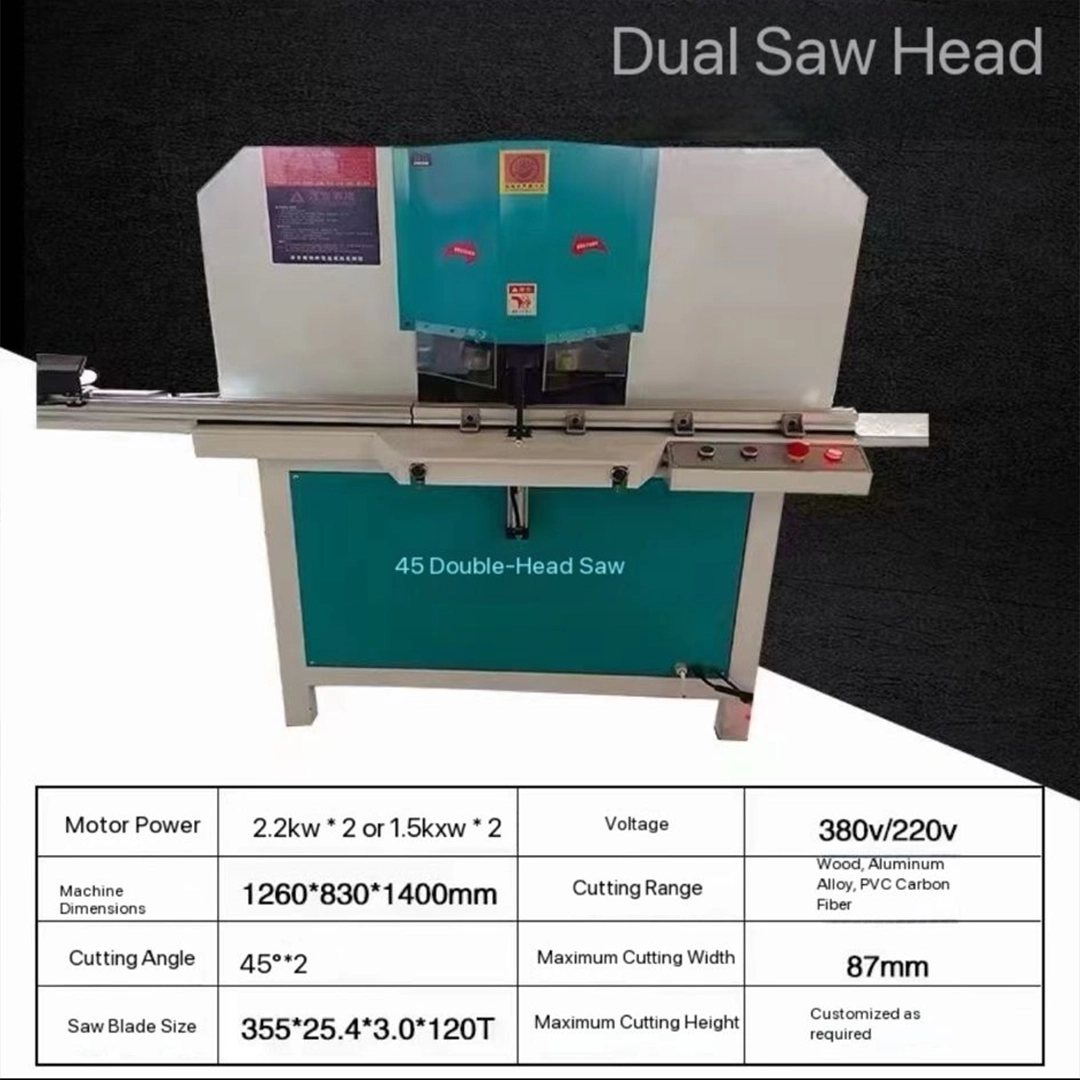

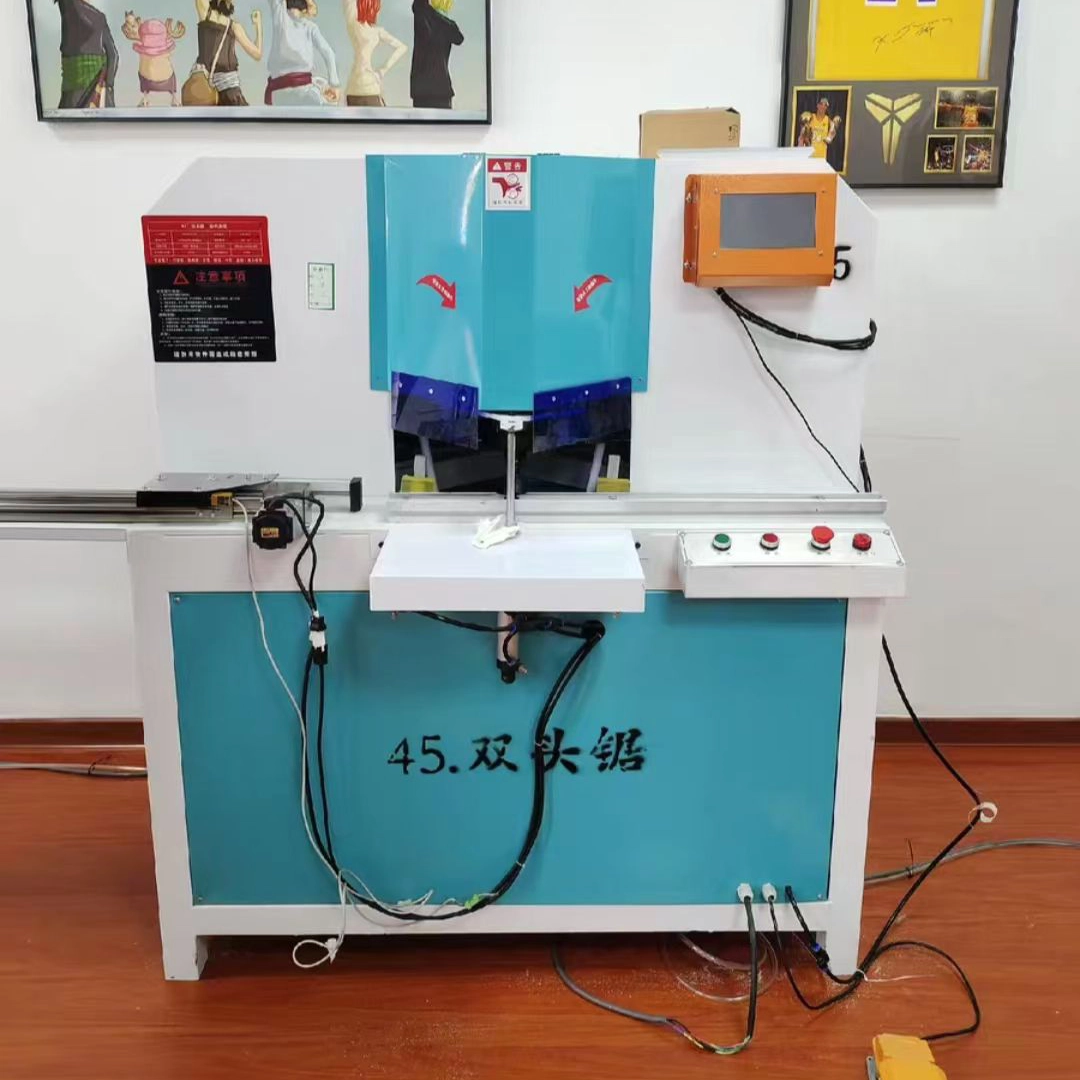

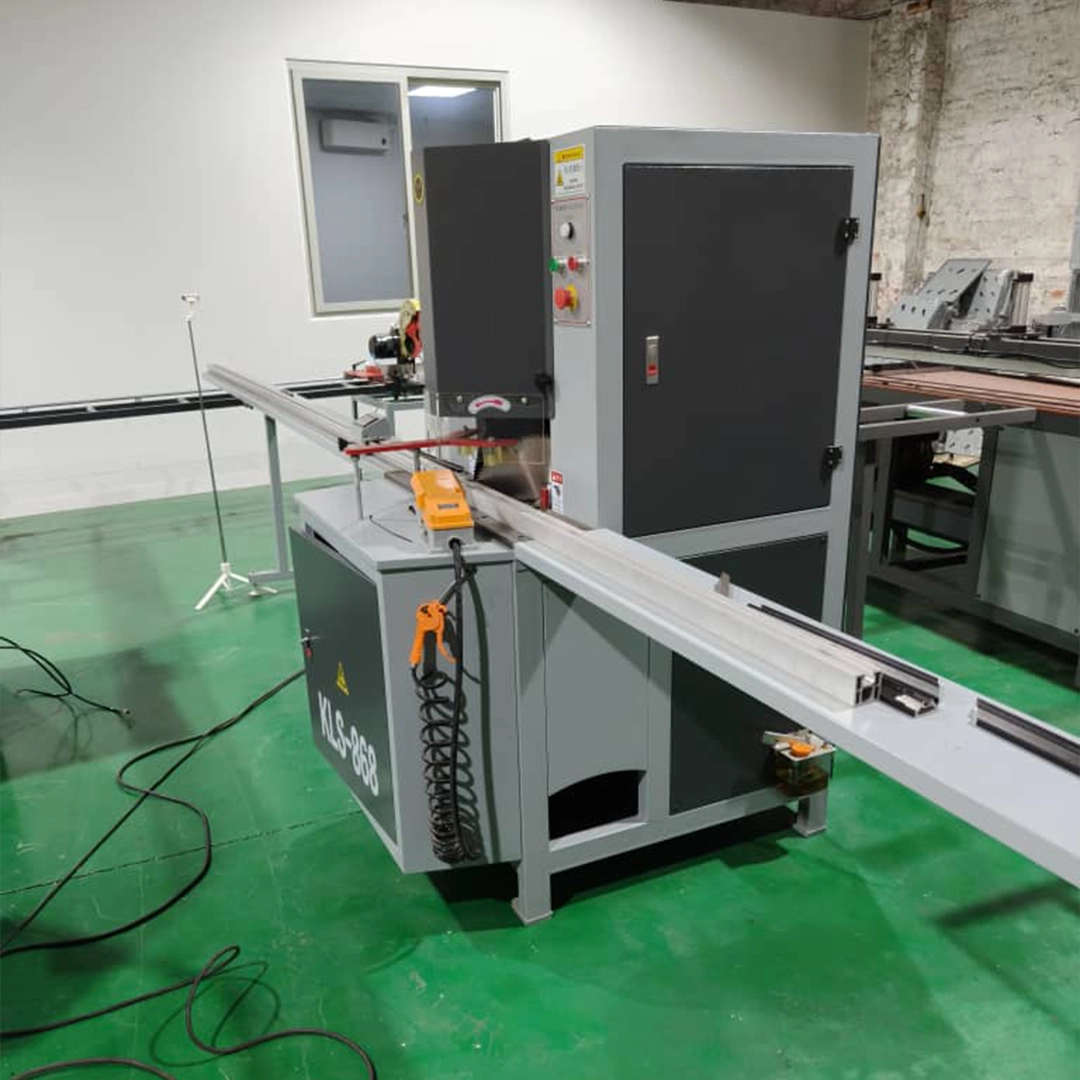

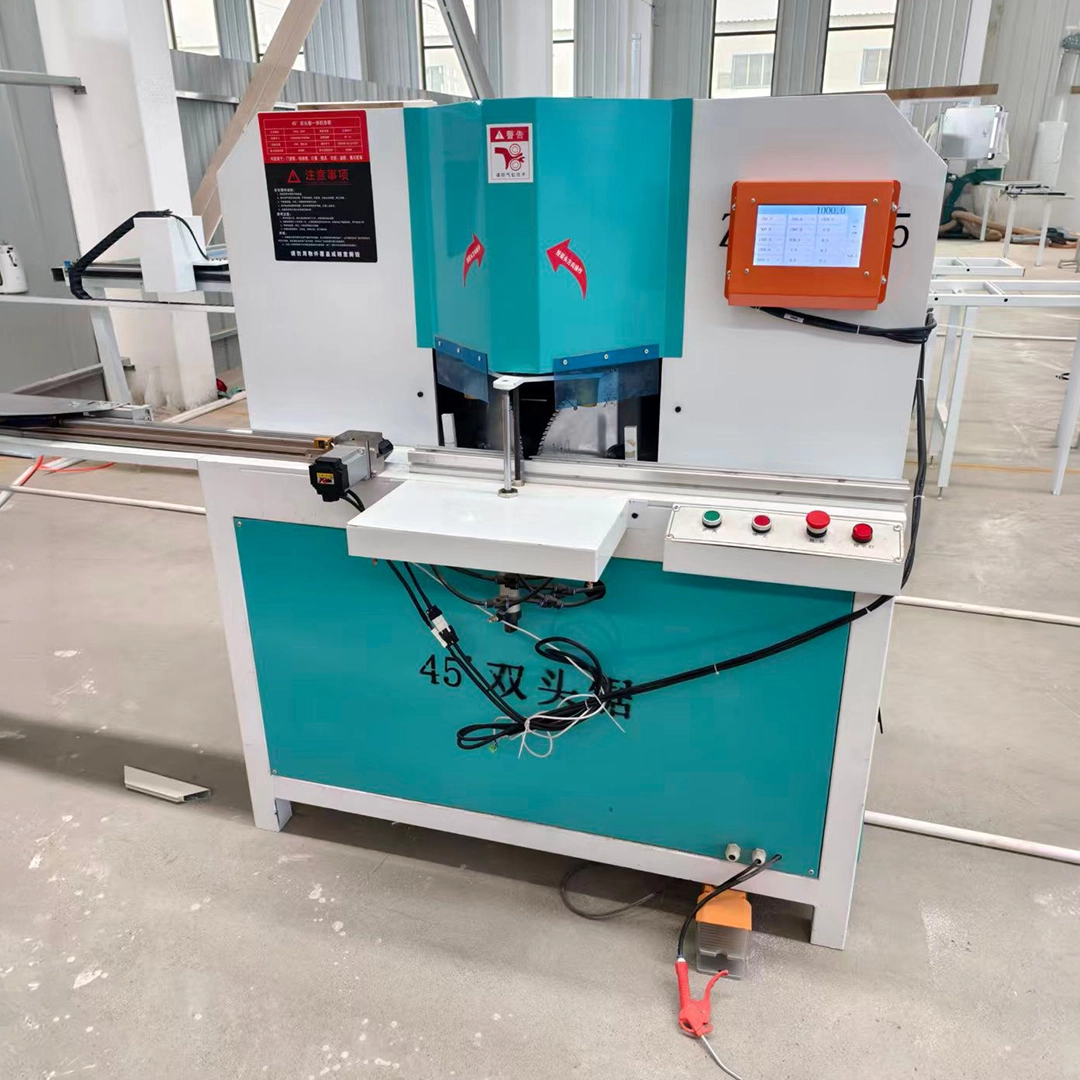

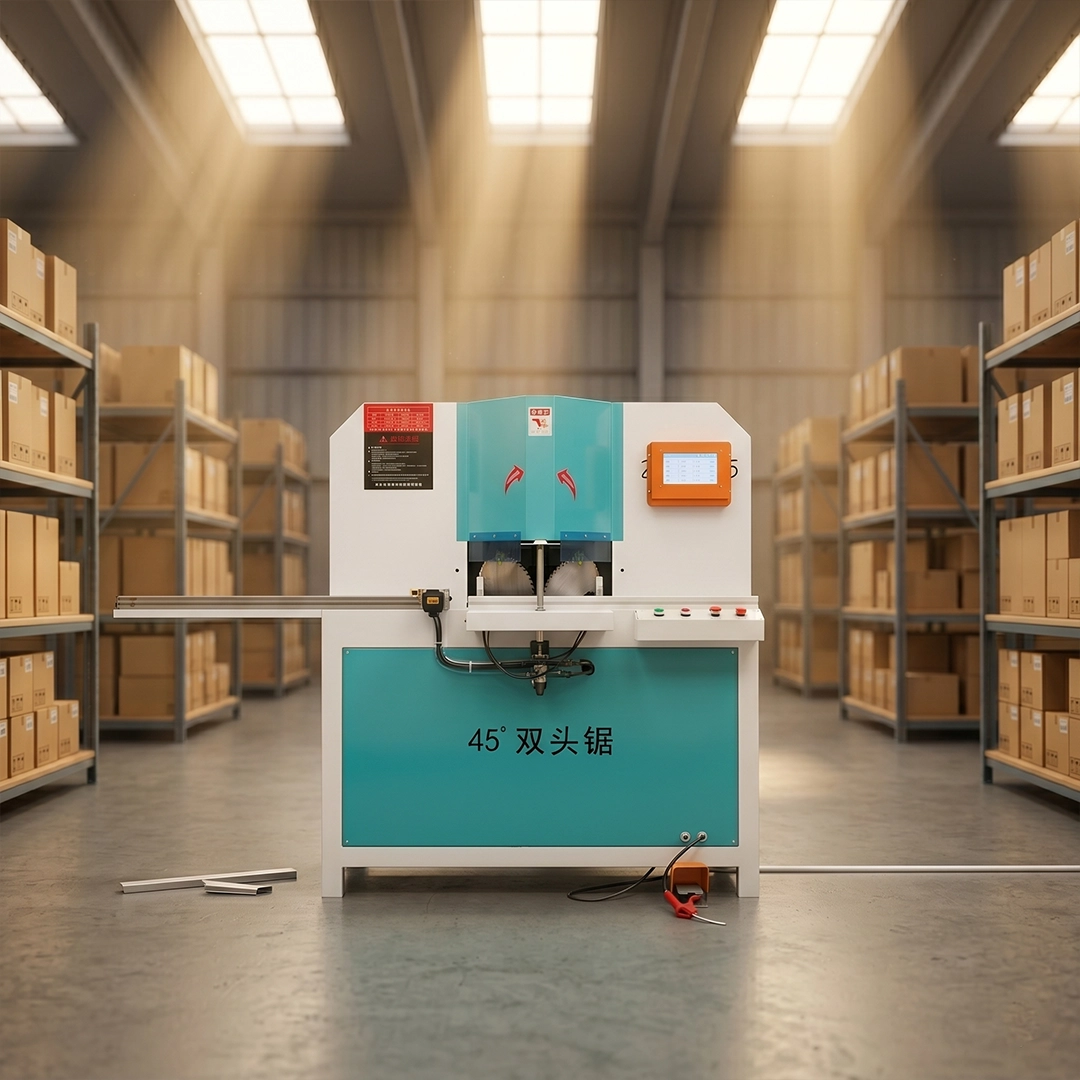

45° Double Blade Cutting Machine
45° Double Blade Cutting Machine is a specialized cutting machine designed for precision cutting of materials at a 45-degree angle using two blades. It is commonly used in industries such as metalworking, woodworking, and construction for tasks like cutting pipes, tubes, profiles, and other materials with high accuracy and efficiency.
Specification:
- Motor power: 2.2 kw * 2 or 1.5 kw * 2
- Voltage：380v / 220v
- Machine Dimensions：1260mm*830mm*1400mm
- Cutting Range：Wood, Aluminum, Alloy, PVC, Carbon Fiber
- Cutting Angle：45° * 2
- Maximum Cutting Width：87mm
- Saw Blade Size：355*25.4*3.0*120T
- Maximum Cutting Height：Customized as required

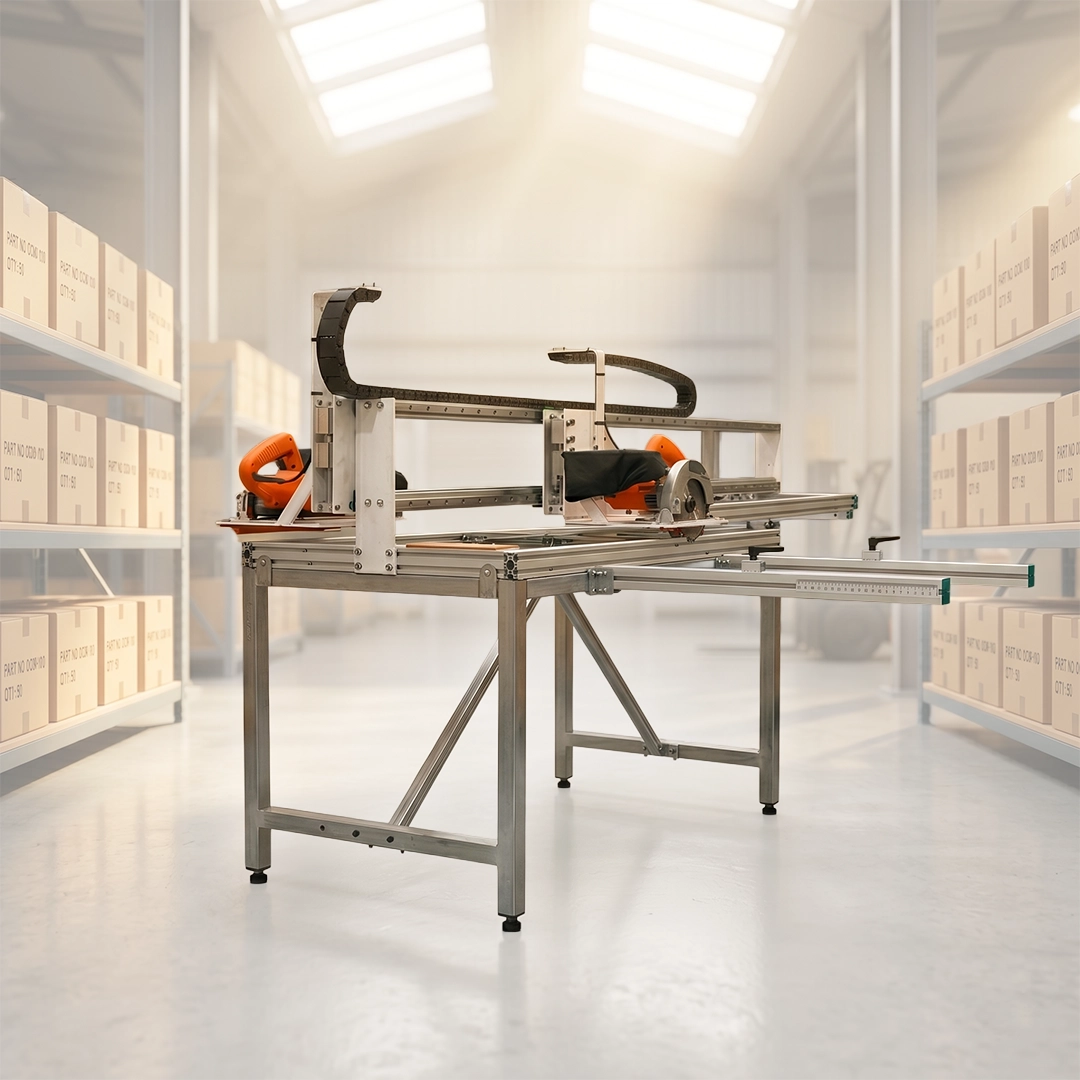

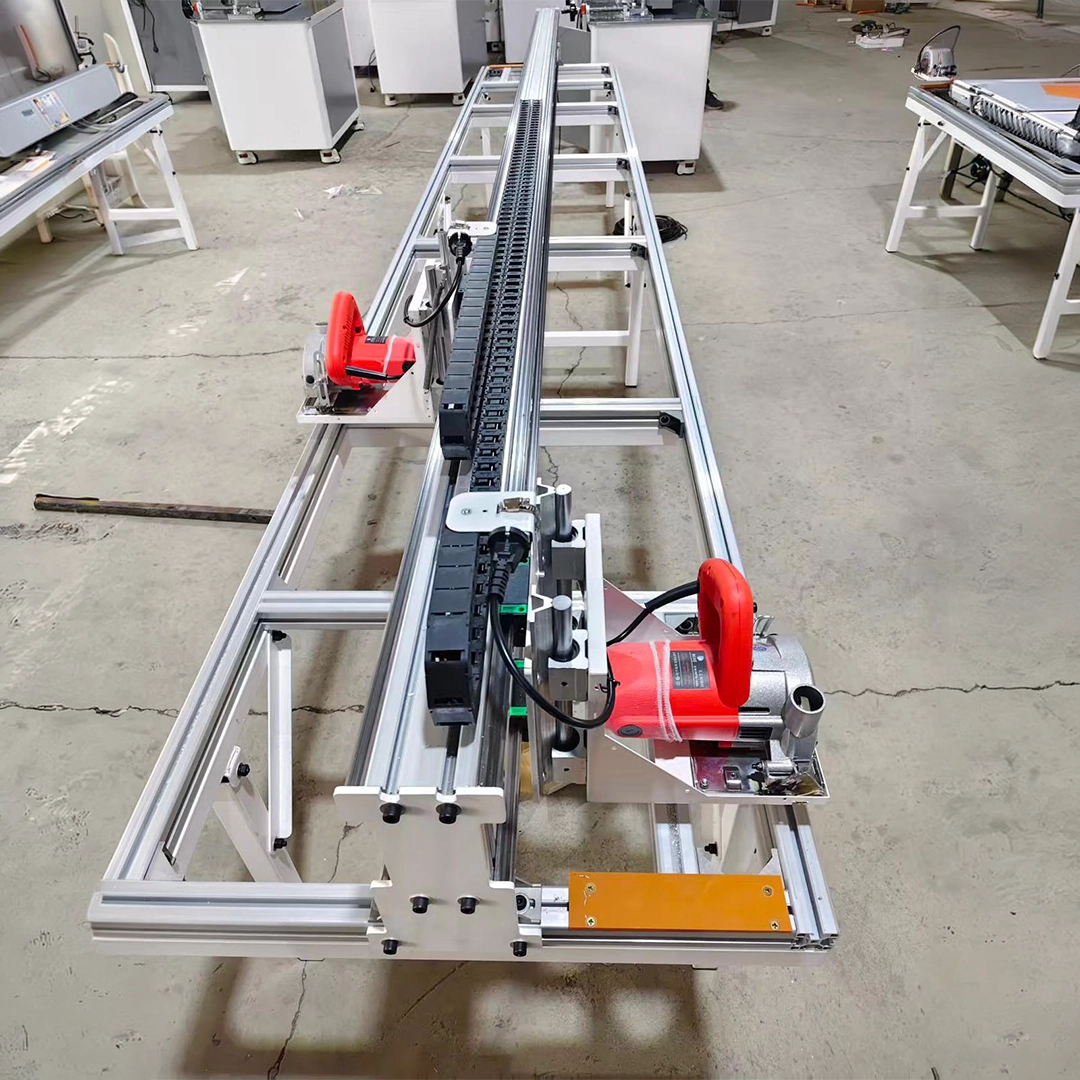

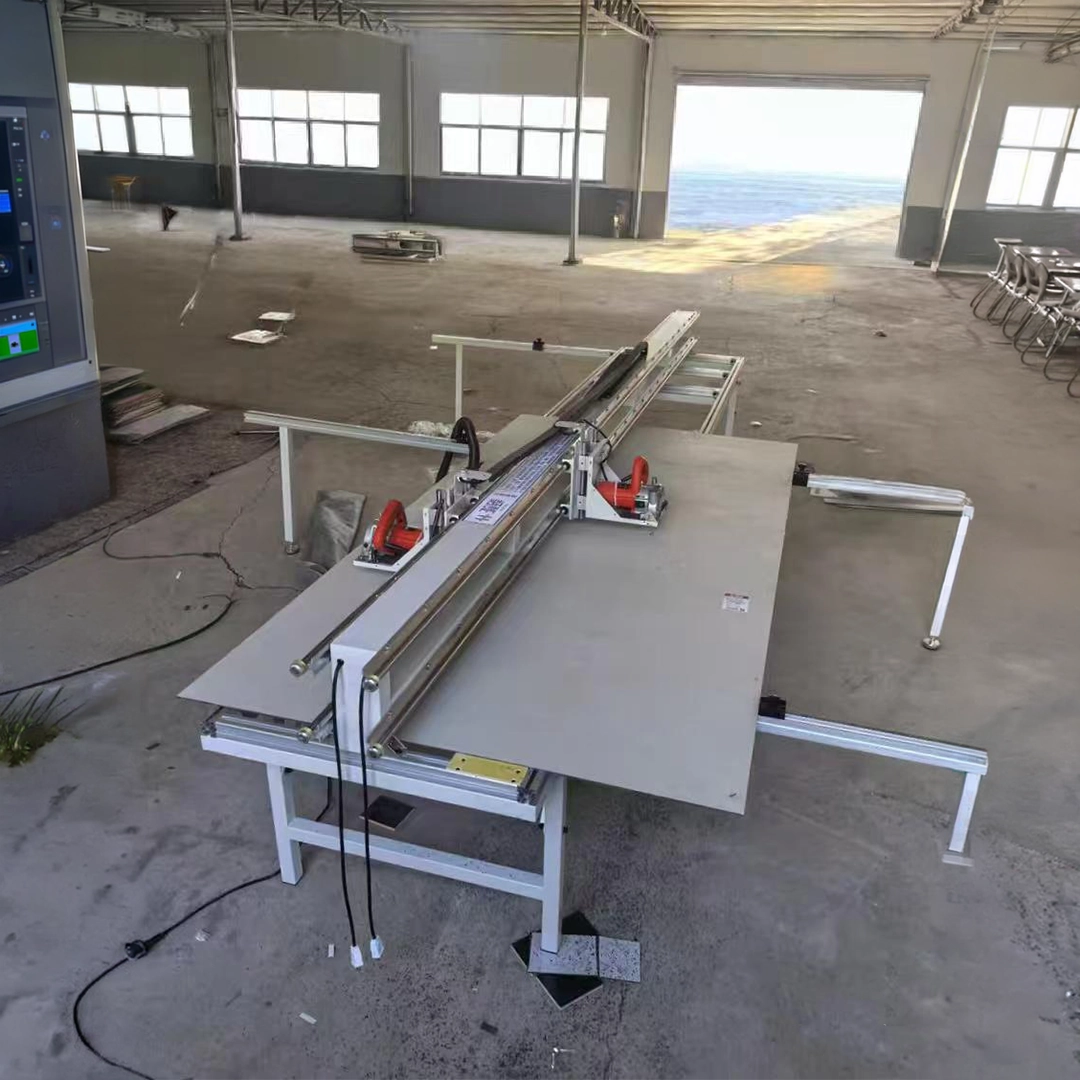

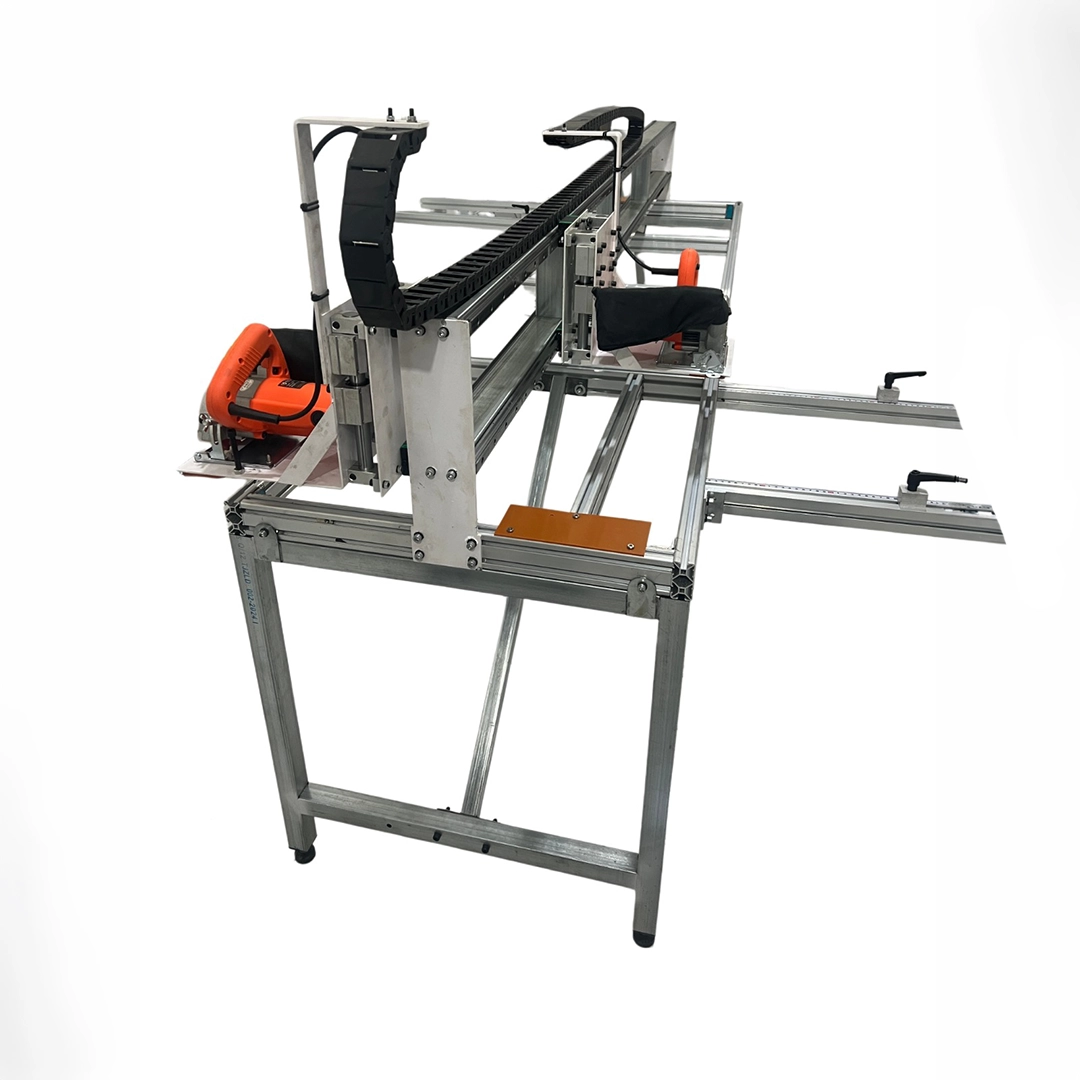

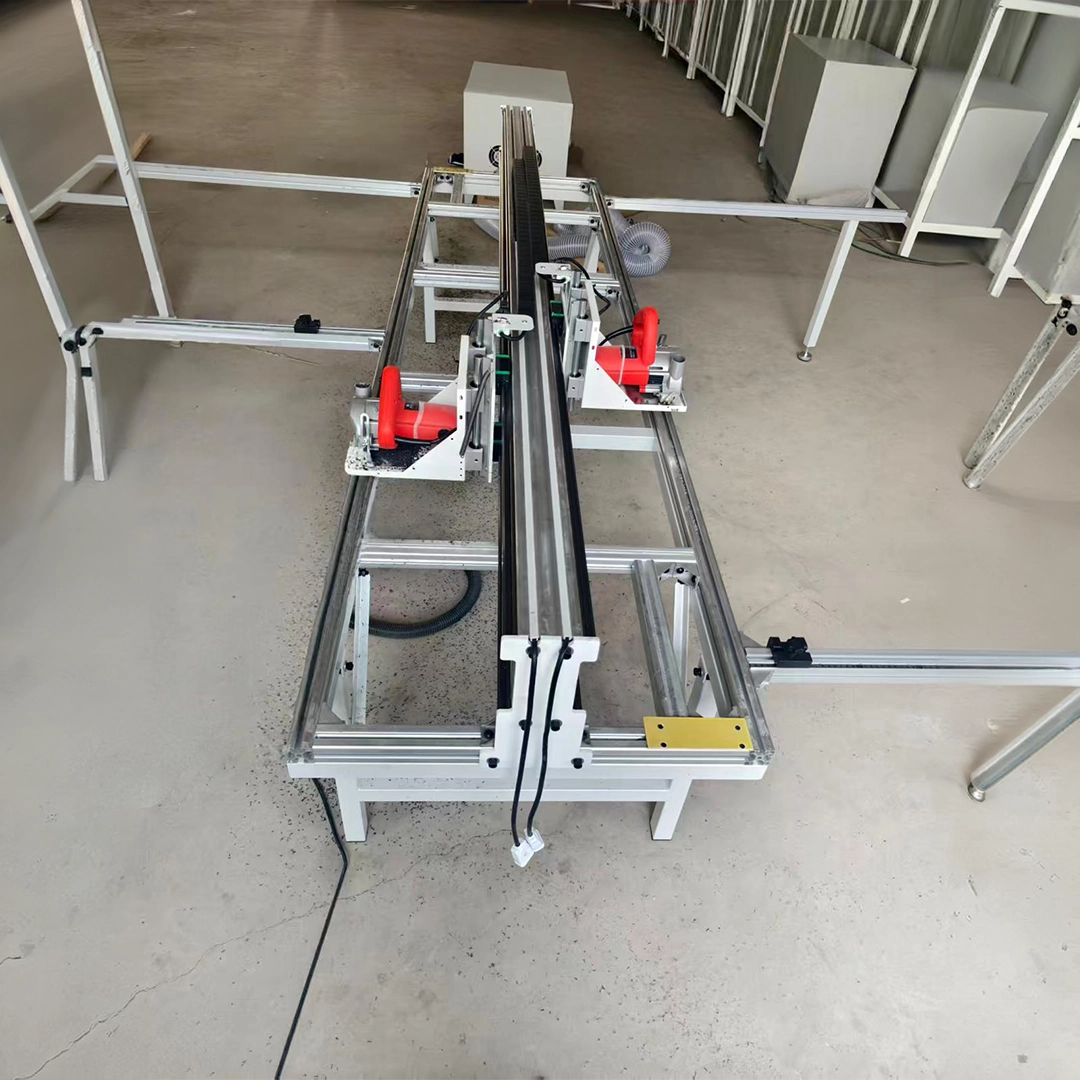

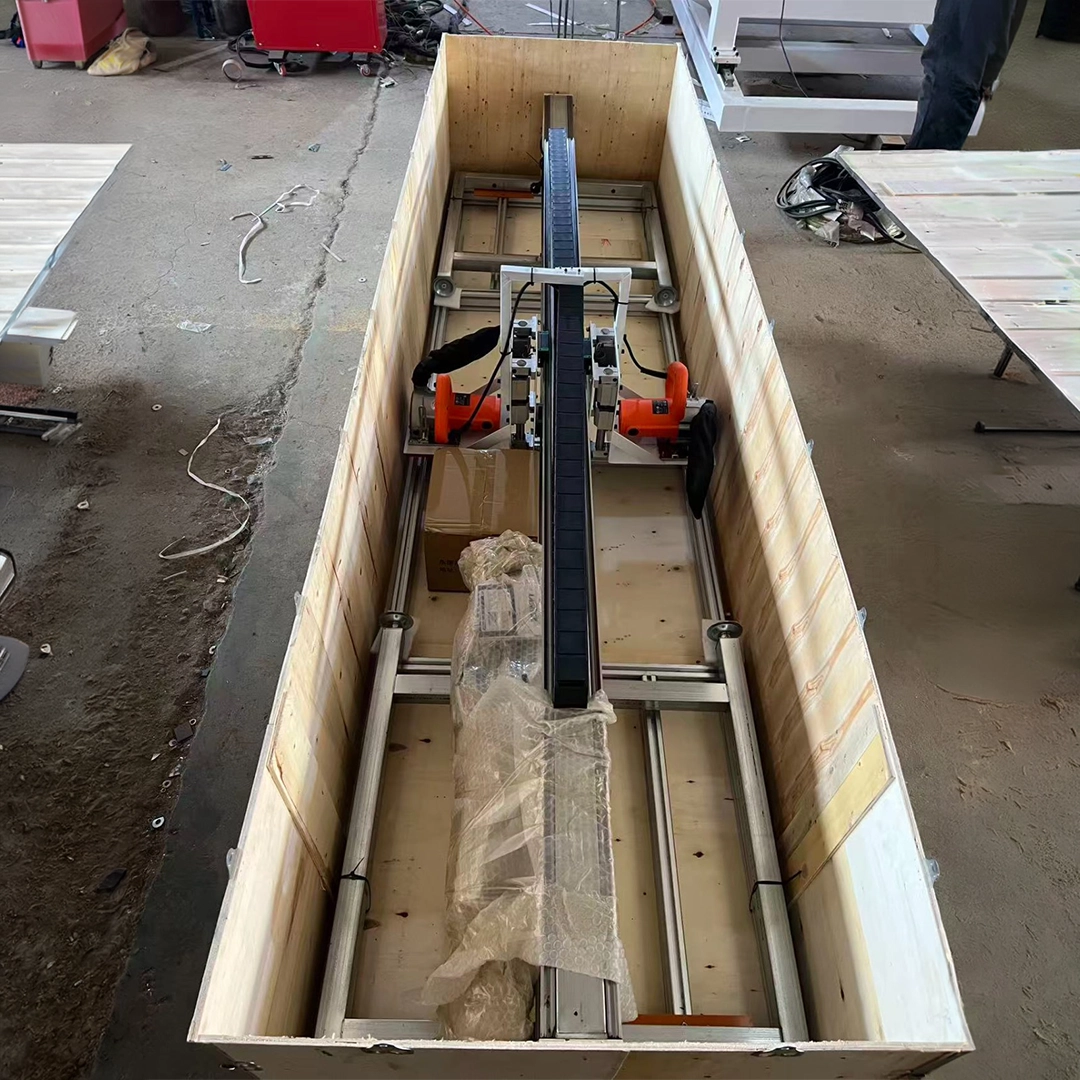

PVC Grooving & Cutting Machine
Available Sizes: 2480, 2500, 2520, 3060, 3540 & 4020
Specification:
- Model No: L-2500
- Machine Weight：65 KG
- Dimensions：274*75*60 cm
- Voltage：220V / 1P 50~60 Hz
- Grooving/Cutting Motor Power：2280 W
- Grooving/Cutting Motor Speed：13000 RPM
- Grooving/Cutting Motor Cutter Inner Diameter：20 mm
- Grooving/Cutting Motor Cutter Diameter：100 mm
- Grooving/Cutting Stroke：2.44 mm
- Grooving/Cutting Sheet Thickness：0-15 mm
- Machine Functions：Cutting ACP & Other Sheet Materials, Creating V-Shaped and U-Shaped Grooves
